Simulator CDOT 821 on vSphere 5.1U1 - 0 disks found !

renault
4,566 Views

Hi all, I'm trying to run the simulator on ESXi 5.1U1.



The pb is the filer do not see its disks. I tried

- without files modifications, just enterring : vmkload_mod multiextent, adding to Vsphere inventory, then start.

- with files modification using theses commands, then adding VM to Vsphere inventory, then start, as stated here : http://community.netapp.com/t5/Simulator-Discussions/ONTAP-Simulator-Fixes-MEGA-Thread/td-p/11213

vmkload_mod multiextent

cd /vmfs/volumes/nfs99/f-CDot821-sim

vmkfstools -i DataONTAP-sim.vmdk DataONTAP-sim-fixed.vmdk -d thin

vmkfstools -i DataONTAP.vmdk DataONTAP-fixed.vmdk -d thin

vmkfstools -U DataONTAP-sim.vmdk

vmkfstools -U DataONTAP.vmdk

vmkfstools -E DataONTAP-sim-fixed.vmdk DataONTAP-sim.vmdk

vmkfstools -E DataONTAP-fixed.vmdk DataONTAP.vmdk

vmkload_mod -u multiextent



See joined pic Does it means this simulator is not compatible with vSphere 5.1 ?

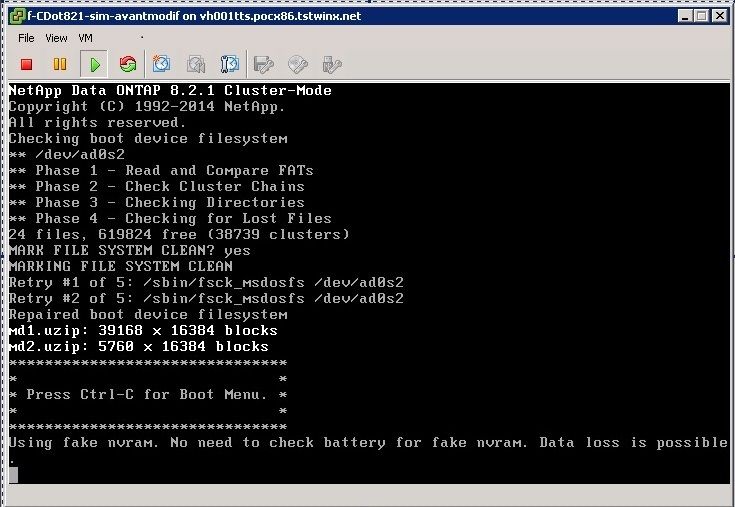

CDOTsim821 - boot beginning.jpg

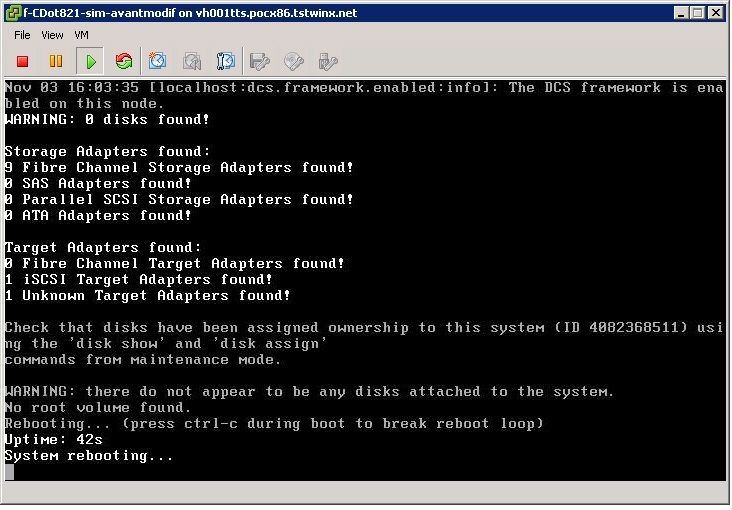

CDOTsim821 - no disks.jpg



Thank you

ML

1 ACCEPTED SOLUTION

shatfield
4,540 Views

Ctrl-C at the prompt, then option 4 from the menu.





View solution in original post

4 REPLIES 4

shatfield
4,541 Views

Ctrl-C at the prompt, then option 4 from the menu.





renault
4,528 Views

Hi,

Thank you for this suggestion, but it does not work :

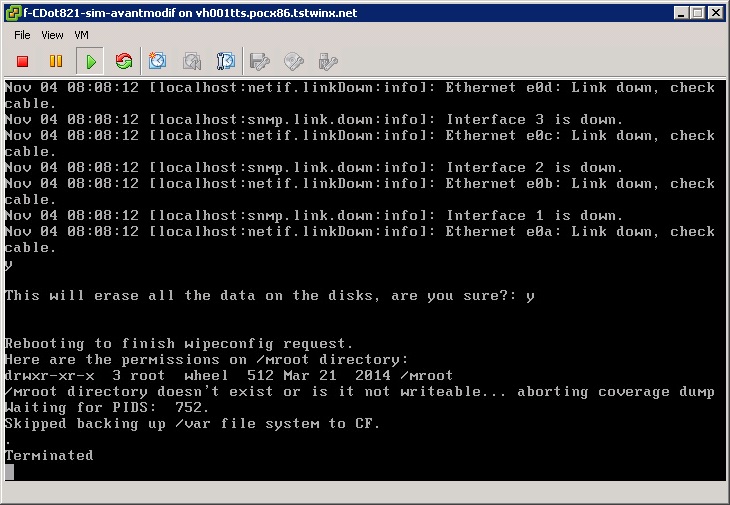

CDOTsim821 - initialize mroot do not exist or is it not writeable.jpg

shatfield
4,523 Views

Does it bootloop again after the option 4? (the first reboot is expected).



If so, something happened during init that prevented the simdisks from being created.  To confirm, Ctrl-C to the boot menu, then ls /sim/dev/,disks

if the directory is empty, you need to rearm vdevinit at the loader:



Reboot, stopping at the LOADER> prompt, then enter the following:

setenv bootarg.vm.sim.vdevinit "23:14:0,23:14:1"
setenv bootarg.sim.vdevinit "23:14:0,23:14:1"

boot



Then Ctr-C, option 4.  You should get a reboot, then a wall of dots, then the setup script.



renault
4,510 Views

Hi

Thanks to all of you.



In fact, after option 4, there is an error, but after reboot, I can see the wall of dots, and the cluster wizard is automatically started.



Best regards

ML
