How To: Build a multilevel alert in Performance Advisor


Updated: April 17, 2013 - updated templates attached, please update your systems.


How to: Build a multilevel alert in Performance Advisor

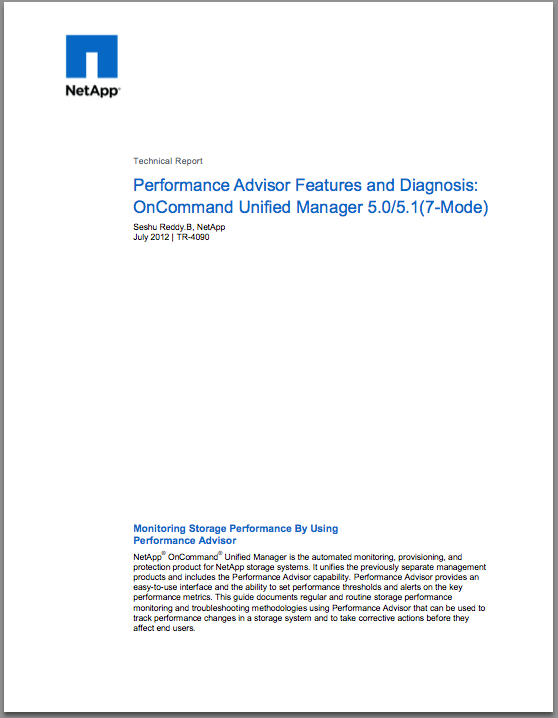

In this article I build on the excellent technical report TR-4090 Performance Advisor Features and Diagnosis (7-mode) which outlines what to monitor with Performance Advisor. If you have not seen this paper, I highly recommend you download it here. It will give you a sound methodology and explain which counters really matter.




Monitoring a performance counter with a threshold is useful, but the typical threshold has a single value and a single severity level: error.


In this article, I'll show you how to build multilevel thresholds as defined in the Performance Advisor Default Thresholds document and assign alarms to those so you get notified as each is breached.


Building and applying a multilevel threshold is a 4 step process:

  1. Build the template
  2. Set the severity levels
  3. Apply the template to objects to monitor
  4. Create alarms for notification

First, decide what you want to monitor. In our case, I'll use the latency for the CIFS protocol and build a single threshold template with three distinct thresholds, each with a different severity level. Here are the thresholds and the severities we'll be using.






> 15ms over 5 minutes



> 20ms over 5 minutes



> 40ms over 5 minutes



Step 1: Build the template

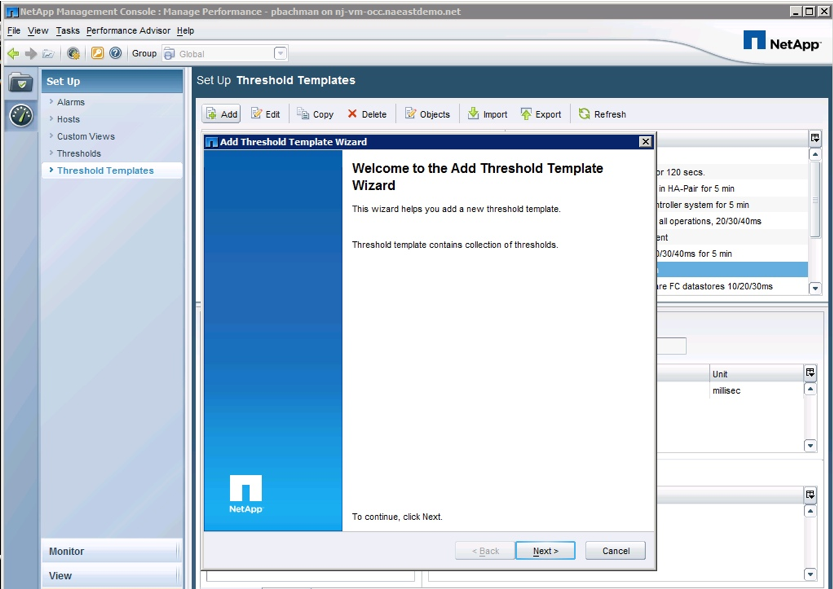

Login to the NetApp Management Console and select Performance Advisor. Go to the bottom of the navigation panel and click Setup. In the upper portion of the panel, click Threshold Templates. Click the Add icon in the main panel to start the Add Threshold Template Wizard.



Use the Next button to step through the wizard, completing this information:


Name:  NA_CIFS_Latency

Description:  CIFS Latency > 15/20/40ms over 5 min

Threshold Interval(seconds):  300


Event Name:  CIFS_Latency_warn

Object:  cifs

Counter:  cifs_latency

Type:  upper

Value:  15

Unit:  millisec


Event Name:  CIFS_Latency_error

Object:  cifs

Counter:  cifs_latency

Type:  upper

Value:  20

Unit:  millisec



Event Name:  CIFS_Latency_critical

Object:  cifs

Counter:  cifs_latency

Type:  upper

Value:  40

Unit:  millisec



When completed, your template should look like this:


Step 2: Set the Severity Levels


When you create an event in a template Performance Advisor assigns it a severity of error. You need to modify the warning and critical level events so that they have the correct severity level. To do this, we need to go to the command line on the OnCommand server.


Each performance 'event' consists of two conditions: a normal condition and a breached condition. The normal condition is the expected state, that is not an error, while the breached condition signifies the abnormal condition for which you are monitoring.


To set the correct severity we will modify the breached condition of each event using the dfm eventType command. The syntax of the command is:


    dfm eventType modify -v <event-severity> <event-name>




     <event-name> = <event type>:<event>:<condition>


In our case, the <event type> is perf since this is a performance event, the event is the name we created, and the condition is breached. The commands to modify our warning and critical events to the correct severity are:


C:\>dfm eventType modify -v critical perf:CIFS_Latency_critical:breached

Modified event "perf:CIFS_Latency_critical:breached".


C:\>dfm eventType modify -v warning perf:CIFS_Latency_warn:breached

Modified event "perf:CIFS_Latency_warn:breached".


The commands to verify our modifications are:


C:\>dfm eventType list perf:CIFS_Latency_warn:breached

Event Name                                         Severity     Class

-------------------------------------------------- ------------ ------------------

perf:CIFS_Latency_warn:breached               Warning      perf:CIFS_Latency_warn


C:\>dfm eventType list perf:CIFS_Latency_critical:breached

Event Name                                         Severity     Class

-------------------------------------------------- ------------ ------------------

perf:CIFS_Latency_critical:breached           Critical     perf:CIFS_Latency_critical


If you are creating a series of these events, create a batch file or shell script to make the severity changes for you, it will make things go much easier and quicker.



Step 3: Apply the threshold template to what you want to monitor


We designed this template to monitor latency for the CIFS protocol, which is a controller-level value. Our next step is to apply the template to the controllers we wish to monitor.


Select the threshold template NA_ CIFS_Latency, right click, and choose Objects from the drop down menu. In the Objects pane, select the controllers to monitor in the left panel and use the > button to move the controller to the right panel.  Click the OK button to begin monitoring the controllers for the threshold.

Now the system will generate a warning, error, or critical event entry in the log each time the threshold is breached, and a normal event when the counter returns below the threshold.


OK, we're almost done, you only have one more step!


Step 4: Add Alarms for the Events


Now that you are monitoring the thresholds and generating events in the logs, one step remains - telling the system for which events you need alarms (notifications) generated.


In the Setup navigation panel, select Thresholds. In the main panel select the threshold you want to generate alarms.



Hint: you can use the filter in the 'Event Name' and 'Object' columns to quickly locate the events. For our events, enter 'CIFS' in the filter box and the display will show only events beginning with 'CIFS'.

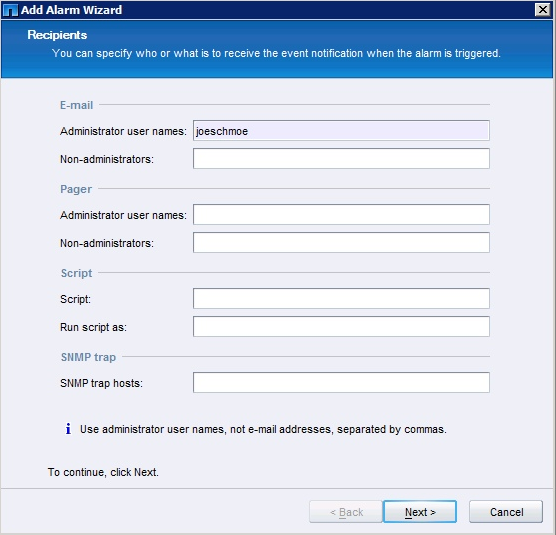

Once you have selected the threshold, right-click and choose Add Alarm from the drop down menu. On the Add Alarm Wizard, fill in the field to notify via e-mail, pager (SMS messaging), a script to execute, or a SNMP host to send a trap to. Click Next to move to the next panel, then enter the time range for the alert to be active, and whether to do repeat notifications. Click Next one more time, review your choices, then click Finish to save the alarm. Congratulations, you're now set to monitor and alert.



Quick Start


As a quick start, I have uploaded a pre-built set of multilevel threshold templates for OnCommand 5.0 that implement basic multilevel thresholds as outlined in the Thresholds document mentioned at the beginning of this post. The file contains these thresholds, ready to import into Performance Advisor


Updated: Two changes as of April 17, 2013.


The NA_CPU_Busy_HA and NA_CPU_Busy_SGL templates are updated to use the "avg_processor_busy" counter which presents a more accurate picture of controller CPU utilization.


Threshold Template



CIFS Latency > 15/20/40ms over 5 min


CPU busy > 50/70/90 Pct on controller in HA-Pair for 5 min


CPU busy > 60/70/80 Pct on single controller system for 5 min


Check for disks busy > 60/70/90 percent


FCP avg latency > 10/20/30ms over 5 min


iSCSI average latency > 15/20/30ms over 5min


LUN average read/write latencies > 20/30/40ms for 5 min


Maximum disk busy > 80/90/98 for 5 minutes


NFS v3 average latency > 15/20/40ms over 5min.


NFS v4 average latency > 15/20/40ms over 5min.


Average latency across controller for all operations, 20/30/40ms


These are based on the monitoring thresholds outlined in the Thresholds document. They do not include application specific thresholds, but based on this article you should be able to create those very easily.


Good Luck and happy monitoring!
