Available IOps on the aggregate

Adam_storage

Hello,

I want to ask if there is any tool which can be run for checking the aggregate IO availability?

1. I tried to add cluster on NetApp Synergy but there is no information about available IOps.

2. On Active IQ I can see graphs which is called available IO but for me its a little bit unclear. Available IOPS is growing when some more traffic is on the environment, how should I read it?

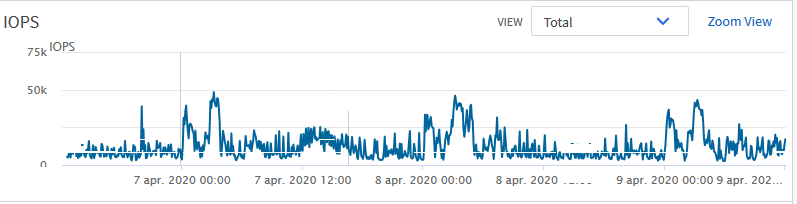

Comparing to IOPS on the environment:

3. I can also count it manually based on individual disk max. IO but I think it will be not quite real information because total IO depends also on other parameters, not just individual drives.

I am looking for just simple answer what are the IOps capabilities on my customer's environment (IO per TB, IO per aggregate or etc.).

Thank you for any suggestions.

Find more posts tagged with

Accepted answers

SpindleNinja

Go to Performance -> Aggr -> click the aggr -> and on the right you'll see reports scroll down a bit and find "perf Capacity Used, Available IOPs and Utilization.

All comments

SpindleNinja

note: Synergy is no more, it will redirect to Fusion.

Check out the Perf Capacity of the system?

http://docs.netapp.com/ocum-73/index.jsp?topic=%2Fcom.netapp.doc.onc-um-perf-ag%2FGUID-1775383D-1A29-4AC2-8C8F-DD5DBFABCD4F.html

There's a graph in AIQUM (Active IQ Unified Manager) that is helpful.

paul_stejskal

Correct, Active IQ Unified Manager is the product you need: https://mysupport.netapp.com/site/products/all/details/activeiq-unified-manager/downloads-tab

Adam_storage

Hello,

I have Active IQ installed in the system but I am not sure how to read graph which I pasted into my previous post.

How to read it? Maksimum available IOPS is 50k? Why availability is not corresponding to IO graph?

When IOPS are close to 0 availability graph should be approx 50k as I understand but it is not like that. Can you please explain?

SpindleNinja

Go to Performance -> Aggr -> click the aggr -> and on the right you'll see reports scroll down a bit and find "perf Capacity Used, Available IOPs and Utilization.
