volume move in CVO 9.7P5 between tiered aggregates

uwf_chowell

I have a volume that I want to move from one tiered aggregate to another, just created, tiered aggregate. The volume's footprint looks like this:

Total Footprint: 5.45TB
Total Footprint Percent:
Containing Aggregate Size: 5.32TB
Name for bin0: Performance Tier
Volume Footprint for bin0: 143.8GB
Volume Footprint bin0 Percent: 3%
Name for bin1: S3Bucket
Volume Footprint for bin1: 5.27TB
Volume Footprint bin1 Percent: 97%

I was under the impression that I could move this volume from one tiered aggregate to another, and the only thing that would move would be the 143.8GB in the Performance Tier, but that is not what is happening. The volume move is moving the entire volume. Shouldn't the move just be copying the 143.8GB in bin0?

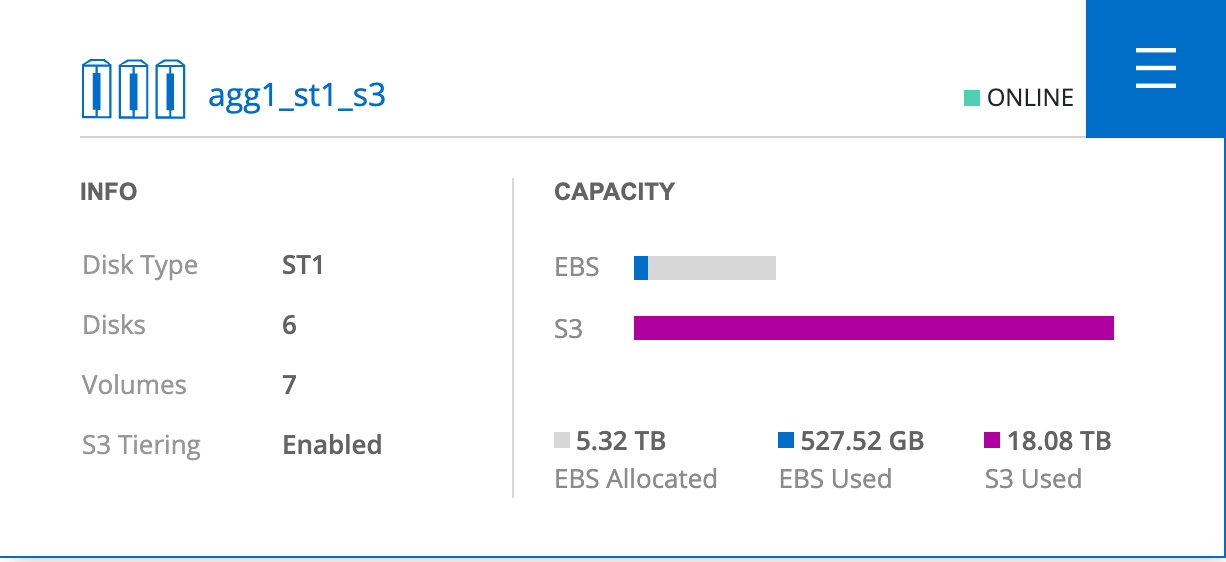

--Carl Screen Shot 2020-07-19 at 1.59.28 PM.png

Find more posts tagged with

Cloud Volumes ONTAP

Accepted answers

RyanUrice

it looks like this volume (erpauxdb1_u02) was created when the cluster was running ONTAP 9.4. Volume moves of volumes that were created in pre-9.5 will not be able to take advantage of the optimized volume move feature that stops the data from being pulled back to the performance tier during the move. Only volumes that were created in 9.5 and newer will be able to utilize this feature.

Reference KB: https://kb.netapp.com/Advice_and_Troubleshooting/Data_Storage_Software/ONTAP_OS/Why_does_volume_move_copy_cloud_tiered_data_on_releases_9.6_and_above

All comments

AlexDawson

Hi Carl!

Unless a volume move policy of "all" is specified in the vol move command, the data moves into the local (performance) tier first, before cooling per policy to go into the s3 tier. So my understanding is that you should move it as "all", then change it back to "auto" to enable re-warming and gradual cooling of new data - https://docs.netapp.com/us-en/occm/concept_data_tiering.html#volume-tiering-policies

Please let us know how it goes!

uwf_chowell

Unfortunately, this still doesn't appear to be working. I'm testing moving another volume from the same source and destination aggregates and using the -tiering-policy all option, and it's still appears to be moving all of the data:

*******************

volume move show -vserver awssvm1 -volume erpauxdb1_u02

Vserver Name: awssvm1
Volume Name: erpauxdb1_u02
Actual Completion Time: -
Bytes Remaining: 8.30TB
Destination Aggregate: agg1_gp2_s3
Detailed Status: Transferring data: 246.0GB sent.
Estimated Time of Completion: Mon Jul 20 10:38:02 2020
Managing Node: awsclu1-01
Percentage Complete: 2%
Move Phase: replicating
Estimated Remaining Duration: 00:17:32
Replication Throughput: 8.07GB/s
Duration of Move: 01:27:08
Source Aggregate: agg1_st1_s3
Start Time of Move: Mon Jul 20 08:53:31 2020
Move State: healthy
Is Source Volume Encrypted: false
Encryption Key ID of Source Volume:
Is Destination Volume Encrypted: false
Encryption Key ID of Destination Volume:

*******************

From volume show-footprint:

Total Footprint: 8.10TB
Total Footprint Percent:
Containing Aggregate Size: 5.32TB
Name for bin0: Performance Tier
Volume Footprint for bin0: 170.2GB
Volume Footprint bin0 Percent: 2%
Name for bin1: S3Bucket
Volume Footprint for bin1: 7.88TB
Volume Footprint bin1 Percent: 98%

RyanUrice

Reference KB: https://kb.netapp.com/Advice_and_Troubleshooting/Data_Storage_Software/ONTAP_OS/Why_does_volume_move_copy_cloud_tiered_data_on_releases_9.6_and_above

AlexDawson

That's great you found that! I'm sorry we weren't able to find it quicker.

Thanks for updating - I hope this helps someone in the future.

heightsnj

Please advise how I could find out this volume ( (erpauxdb1_u02 in this case) was created when the cluster was running ONTAP 9.4 or prior??
