Is that possible to use 1 iWARP card in A900 or FAS9500?

Leiz23

Hi,

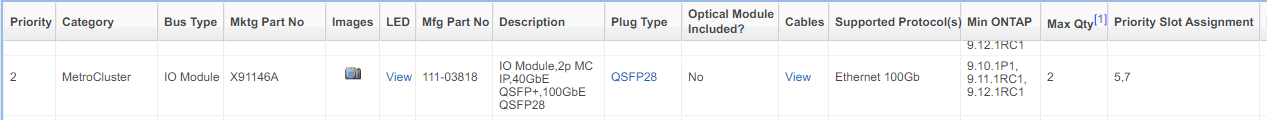

About the A900 and FAS9500 MCC IP configuration, the priority slot assignment is 5,7 in HWU.

In MCC IP installation guide, e5b and e7b are used as metrocluster interface, which means e5a and e7a are not used.

Is that possible to use 1 card and both ports like A700? Instead of using 2 cards.

If not possible, what is the reason behind it?

Thanks

Lei

Find more posts tagged with

Accepted answers

akiendl

You need the 2 cards. Reason being that you do not want to have your MetroCluster traffic go through a single card.

ak.

All comments

akiendl

You need the 2 cards. Reason being that you do not want to have your MetroCluster traffic go through a single card.

ak.

Leiz23

thanks. But there is redandency even with 1 card, becase each card has two ports.

I am curious why A900 is special on this point compare to other platfoms like A700.

paul_stejskal

It's on the same card. If the card fails, you lose connectivity to the other side for HA failover.

akiendl

It is still the same slot on the controller. The idea is to be able to not be impacted by the failure of a whole card.
