SnapMirror Business Continuity create Consistency Group problem

unitech89e9

It's my workflow
1.create cluster peer

2.add mediator

3.create source svm,create volume,create lun

4.create destination svm,and volume with DP type

5.create vserver peer

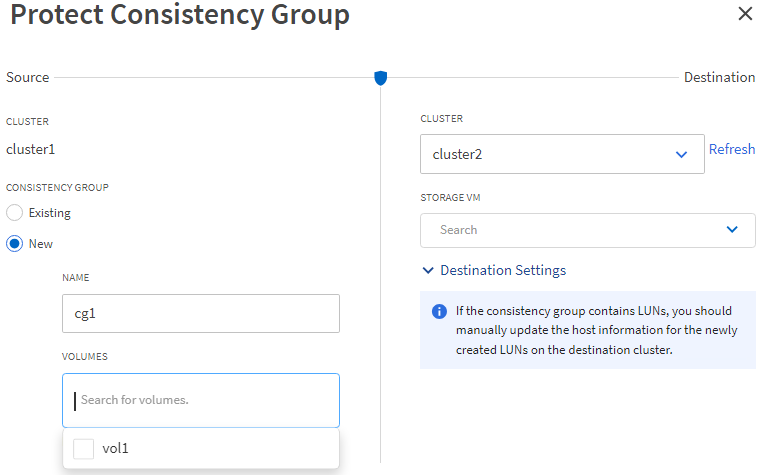

6.in source cluster , Protection -> Overview -> Protect Consistency Group
But I can select only volume,can't select lun
is any step is wrong?

Find more posts tagged with

Accepted answers

Ontapforrum

A consistency group is a collection of volumes that are managed as a single unit. Snapshots in consistency groups enable an entire application workload to be restored.

https://docs.netapp.com/us-en/ontap/consistency-groups/#understand-consistency-groups

Consistency groups overview (netapp.com)

As the snapshots in NetApp/ONTAP works at Volume level, therefore you have to provide the Volume of the underlying LUN. More info in the link above.

All comments

Ontapforrum

A consistency group is a collection of volumes that are managed as a single unit. Snapshots in consistency groups enable an entire application workload to be restored.

https://docs.netapp.com/us-en/ontap/consistency-groups/#understand-consistency-groups

Consistency groups overview (netapp.com)

As the snapshots in NetApp/ONTAP works at Volume level, therefore you have to provide the Volume of the underlying LUN. More info in the link above.

unitech89e9

but it don't have the item for lun to select

John_Kolacz

First answer is correct. Snapmirror is for volumes. Volumes contain luns. When you mirror the volume the lun will be in the destination.
