AFF-150 data aggregate sizing

Matt-Edwards

In fusion i have a solution but it appears that this solution is already configured. This solution only has 16 SSD disks and that we can only use the data aggregates that the solution provides. If i remove the data aggregates from the solution to then try and create only one lager aggregate , it only allows a one size to be created. It appears that we cannot remove the two data aggregates and create one large one instead,. Is this a restriction due to ADP?

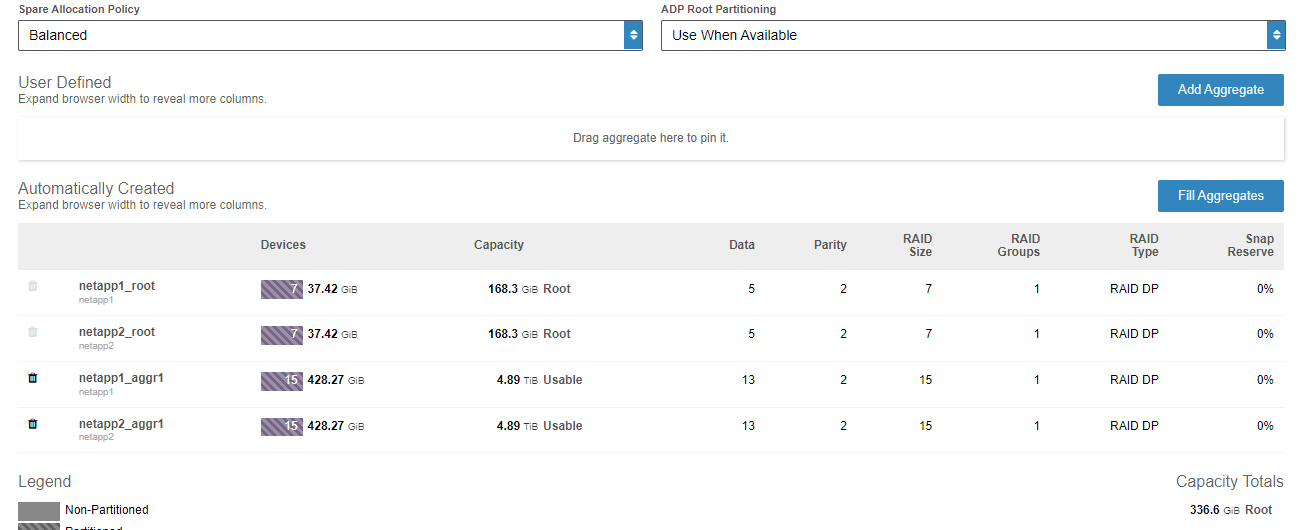

Due we just have to use the configuration that is shown below utilizing the two 4.8 TiB data aggregates ?

Other systems allows creation of one large aggregate but they dont use ADP.

Find more posts tagged with

AFF

Accepted answers

SpindleNinja

think you're missing half the disks in that aggr - I see it as such -

or w/spare -

All comments

SpindleNinja

You have to click the "add" button under devices -

Matt-Edwards

Yeah , realize you have to do that. If i delete the two auto generated Data aggregates which are 4.8 Tib in size and then attempt to create a new single aggregate. It only allows the size of 5.27 Tib , meaning i have lost 4.33 Tib of space. So it doesnt allow one large aggregate of the same capacity. That is my question really. Is this due to ADP and a limitation ?

SpindleNinja

think you're missing half the disks in that aggr - I see it as such -

or w/spare -

Matt-Edwards

Thanks I see what i wasnt doing now in the tool. i didnt add the 2nd partition. Thanks
