Introduction: Empowering Oracle E-Business Suite with Modern Cloud Storage
As organizations modernize their mission-critical applications, migrating Oracle E-Business Suite (EBS) to the cloud has become a strategic imperative. Amazon FSx for NetApp ONTAP (FSx for ONTAP) offers a powerful platform for running Oracle EBS, delivering enterprise-grade storage features, simplified management, and significant cost savings.
This blog explores how FSx for ONTAP leveraging Shared Storage capabilities, FlexClone, Multi-AZ high availability, and SnapMirror enables robust, cost-effective, and resilient Oracle EBS architectures.
What is Oracle E-Business Suite
Oracle E-Business Suite, commonly known as Oracle EBS, is a collection of integrated applications that help organizations run their core business operations. It supports a wide range of functions from finance and HR to supply chain, manufacturing, procurement, project management, and customer relationship management, making it a central platform for managing and automating day-to-day business processes.
What is Amazon FSx for NetApp ONTAP (FSx for ONTAP)
Amazon FSx for NetApp ONTAP, or FSx for ONTAP, is a cloud-based file storage solution that combines the power of NetApp’s ONTAP software with the flexibility and scalability of AWS. It’s designed for businesses that need reliable, high-performance storage for applications like Oracle E-Business Suite, SAP, SQL Server, and other mission-critical workloads.

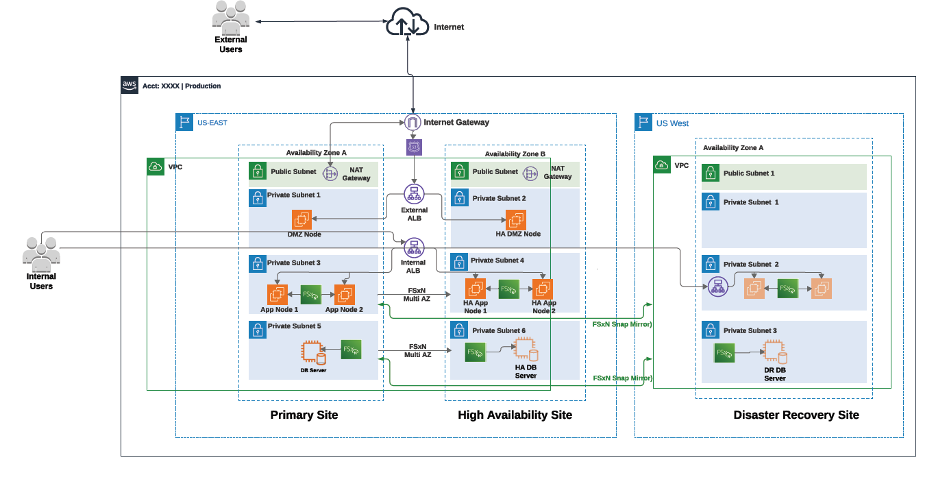

Architecture:
The architecture has the following components:
- AWS Region: An AWS Region is a geographically distinct area where Amazon Web Services (AWS) hosts its cloud infrastructure. Each region contains multiple Availability Zones (AZs) isolated data centers designed for fault tolerance and high availability.
- Availability Zone: An AWS Availability Zone (AZ) is a physically isolated data center within an AWS Region, designed to provide high availability, fault tolerance, and scalability for cloud applications.
- AWS VPC: An AWS Virtual Private Cloud (VPC) is your own private network within the AWS cloud. It lets you securely run resources like EC2 instances, databases, and storage with full control over IP ranges, subnets, and routing just like managing your own data center, but in the cloud.
- Compute (EC2) Layer: Amazon EC2 instances hosting Oracle EBS application and database tiers.
- Storage (FSx for ONTAP) Layer: FSx for ONTAP Multi-AZ (MAZ) refers to a high-availability deployment of FSx for ONTAP that spans multiple AWS Availability Zones, ensuring continuous access to data even during zone-level failures.
- Database Storage: FSx for ONTAP volumes can be mounted using iSCSI or NFS to store Oracle database components like data files, redo logs, control files, and archive logs. This setup provides the performance and reliability needed for Oracle EBS, with fast response times, high throughput, and built-in data protection features that support critical workloads.
- Application Storage: FSx for ONTAP offers a shared NFS file system that supports the Oracle E-Business Suite application tier. This shared storage is essential for mounting the same file system across all EC2 instances running the application. It ensures consistent access to application files, simplifies patching and scaling operations, and enables seamless failovers in multi-AZ deployments, helping maintain high availability and operational continuity.
- High Availability (HA) Site: High Availability site for Oracle E-Business Suite means designing the system to stay up and running even if part of the infrastructure fails. It involves deploying multiple EC2 instances across Availability Zones, using shared storage and load balancers to ensure users can access the application without interruption. This setup minimizes downtime and keeps business operations resilient and responsive.
- Disaster Recovery (DR): A disaster recovery site for Oracle E-Business Suite is a standby environment that mirrors your production setup. It includes replicated database and application tiers, ready to take over during outages or failures. This ensures business continuity with minimal downtime and data loss across regions.
- Load Balancers: AWS Application Load Balancer (ALB) distributes traffic across Oracle EBS application servers, ensuring scalability and high availability for end users.
- External Load Balancer: Routes incoming traffic from the internet to public-facing Oracle EBS components, typically used for self-service portals or externally accessible modules like iSupplier, iSupport etc...
- Internal Load Balancer: Handles traffic within the VPC, directing requests between internal Oracle EBS application servers. This setup helps balance the load across servers and ensures high availability in the event of an application server or service failure.
This architecture supports scalable performance, operational agility, and enterprise-grade data protection for Oracle EBS workloads.
High Availability: Multi-AZ FSx for ONTAP Deployments for Enterprise Uptime
Business continuity is paramount for Oracle EBS, and FSx for ONTAP robust high availability through Multi-AZ deployments. In this configuration, FSx for ONTAP automatically synchronizes data between storage nodes in different AWS Availability Zones. This architecture ensures seamless failover in case of Availability Zone disruptions and minimizes downtime for mission-critical workloads. Additionally, FSx for ONTAP's integration with AWS Backup and snapshot capabilities enhance data protection and simplifies recovery operations.
- Data Integrity: Synchronous replication maintains consistent data across zones, safeguarding critical Oracle EBS information.
- Performance Consistency: FSx for ONTAP ensures low-latency access and uniform performance across AZs, even during failover scenarios.
Multi-AZ FSx for ONTAP deployments are designed for maximum resilience, delivering the uptime and reliability demanded by enterprise Oracle EBS environments.
Disaster Recovery: SnapMirror for Efficient Storage-Level Replication
Disaster recovery is a critical consideration for Oracle EBS, and SnapMirror technology simplifies DR strategies with efficient, low-overhead storage replication. SnapMirror enables asynchronous replication of FSx for ONTAP volumes to remote AWS regions or other FSx for ONTAP instances, ensuring data is protected against site outages or catastrophic failures.
- Storage-Level Replication: SnapMirror operates at the storage level, replicating entire volumes including snapshots and clones without requiring complex application-level configurations.
- Licensing Simplicity: SnapMirror is included with FSx for ONTAP, so organizations do not need separate DR licensing, reducing both cost and administrative burden.
Additionally, by replicating volumes at the storage layer, SnapMirror helps avoid the need for duplicate Oracle database and application licenses in the DR region delivering significant cost savings.
- Rapid Recovery: In the event of a disaster, replicated volumes can be quickly mounted and made available to Oracle EBS application and database servers, minimizing recovery time objectives (RTO).
- RPO Awareness: Asynchronous replication allows organizations to define acceptable recovery point objectives (RPOs), balancing data freshness with replication frequency to meet business SLAs.
With SnapMirror, Oracle EBS customers can implement robust disaster recovery plans without the overhead and complexity of traditional DR solutions.
FlexClone Technology: Accelerating Operations and Reducing Costs
FlexClone is a game-changer for Oracle EBS administrators and architects. This technology allows users to create instant, space-efficient copies of databases, application environments, or even entire file systems. Unlike traditional cloning methods that duplicate data and consume significant storage, FlexClone leverages NetApp's advanced snapshot capabilities to reference existing data blocks, meaning clones occupy virtually no additional space at creation.
Key benefits of FlexClone include:
- Rapid Environment Provisioning: Instantly spin up test, development, or QA environments based on production data accelerating application lifecycle management.
- Space Efficiency: Multiple clones can be created without proportional increases in storage usage, dramatically lowering storage costs.
- Simplified Licensing: FlexClone is included with FSx for ONTAP, meaning no additional licensing is required for cloned environments, a significant advantage for organizations managing multiple Oracle EBS instances.
- Operational Agility: Teams can experiment, validate upgrades, or troubleshoot issues in isolated environments without impacting production systems.
FlexClone empowers IT teams to innovate faster while keeping costs in check, making it an essential tool for Oracle EBS operations on FSx for ONTAP.
Licensing and Cost Benefits: Streamlining Storage Economics
One of the standout advantages of FSx for ONTAP in Oracle EBS deployments is its impact on licensing and cost control. FSx for ONTAP's consumption-based pricing eliminates the need for upfront hardware investments and simplifies ongoing operational costs. The integration of NetApp technologies, particularly FlexClone and SnapMirror, further amplifies cost savings:
- FlexClone: Writable clones of entire file systems or individual volumes can be created instantly, without consuming extra storage. This approach significantly reduces the cost of replicating production environments for the non-production environments.
- SnapMirror: Enables storage-level replication for disaster recovery without requiring separate licensing for DR environments, reducing both complexity and expenses.
By leveraging these features, organizations can optimize their Oracle EBS environments, minimize licensing overhead, and scale storage resources dynamically.
Conclusion: Unlocking the Full Potential of Oracle EBS on Amazon FSx for NetApp ONTAP
Migrating Oracle E-Business Suite to FSx for ONTAP delivers unmatched agility, cost efficiency, and resilience for enterprise workloads. FlexClone technology streamlines environment provisioning and testing while reducing storage costs and licensing complexities. Multi-AZ deployments ensure high availability, and SnapMirror simplifies disaster recovery, all without the need for additional software licenses. For IT professionals and architects, this architecture represents a future-ready foundation for running Oracle E-Business Suite in the cloud empowering innovation, strengthening business continuity, and maximizing return on investment.
