New VSC 6.2.1 install into vSphere6 env - plugin shows up, but can't use

Background:

   vCenter App v6 - dns: vcsa.tnt.com, 192.168.0.101

   VSC 6.2.1 - dns: vsc.tnt.com, 192.168.0.102 (Win2012R2 server w/4GB)

   Problems and screen captures taken while using Chrome 8.5.1 on Windows 2012R2 (vsc server) and Win10 (Vsphere WebClient)

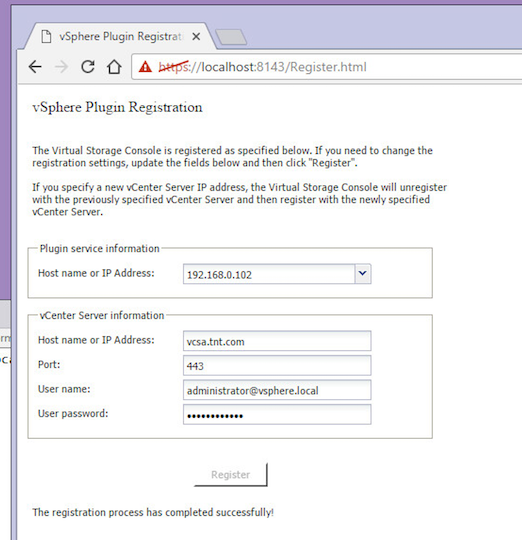

Install on vsc Windows server went fine. Registrator on vsc localhost worked fine (below shows using vsc's IP address but initialled tried FQDN as well). Have confirmed both systems can dns-name ping each other and vsc firewall is off.

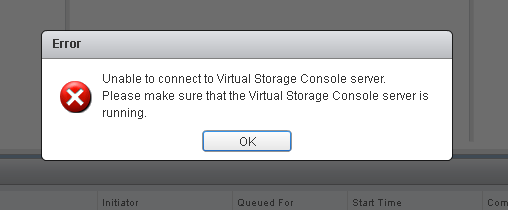

On vSphere Web Client the VSC plugin shows up in main GUI. Also see it Enabled in the vSphere WebClient Admin-Client Plugin list. Howver, when clicking the NetApp VSC icon get a two-part sequence of errors right after it starts with a "Loading data..." progress twirler bar as shown below.

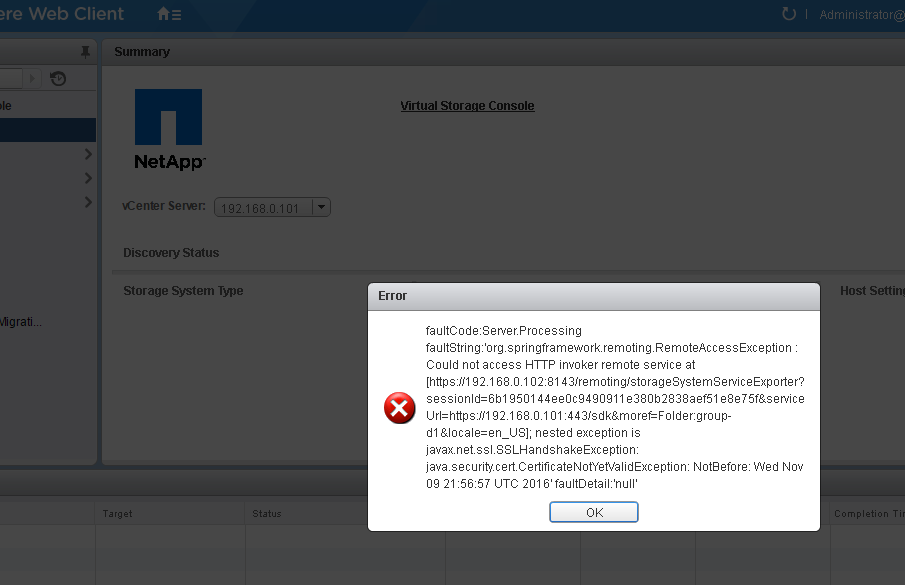

One error has mention of a certificate related issue but I have no ideas on how to resolve.  Any isight or guidance?






... followed by:




Re: New VSC 6.2.1 install into vSphere6 env - plugin shows up, but can't use

Is there a clock skew?

Please make sure that the time is synchronized across all your systems.

If this post resolved your issue, help others by selecting ACCEPT AS SOLUTION or adding a KUDO.
Cannot find the answer you need? No need to open a support case - just CHAT and we’ll handle it for you.

Re: New VSC 6.2.1 install into vSphere6 env - plugin shows up, but can't use

Thanks Georgevj, that was a perfect catch.



I corrected some quick and sloppy lab setup from the past and it's working fine now.



Thanks again.
