Introduction
Flat initiator groups in multi-host iSCSI deployments tend to overexpose storage resources by applying uniform access policies across multiple hosts. This undermines least-privilege principles and increases the risk of misconfiguration. Nested initiator groups address this gap by enabling hierarchical and fine-grained access control, allowing targeted mapping between initiators and storage objects.
In multi-host virtualized environments, storage access depends on how initiators (IQNs/WWPNs) are grouped and how LUNs are mapped to those groups. Those grouping affects:
- Security and least privilege (who can discover what)
- Lifecycle safety (mount, unmount, rescan, and cleanup behavior)
- Operational clarity (audits, troubleshooting, and access reviews)
- Risk of cross-host impact (especially during cleanup operations)
Most deployments use one of two approaches:
- Flat initiator group: one group contains all host initiators for a shared datastore / shared LUN set
- Nested initiator groups: one child group per host, aggregated under a parent group for the datastore
The two models at a glance

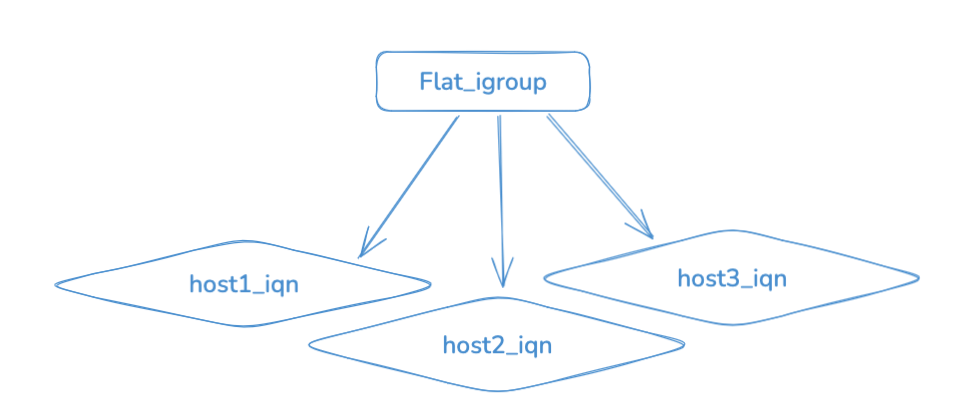

Flat (one igroup, many hosts) |

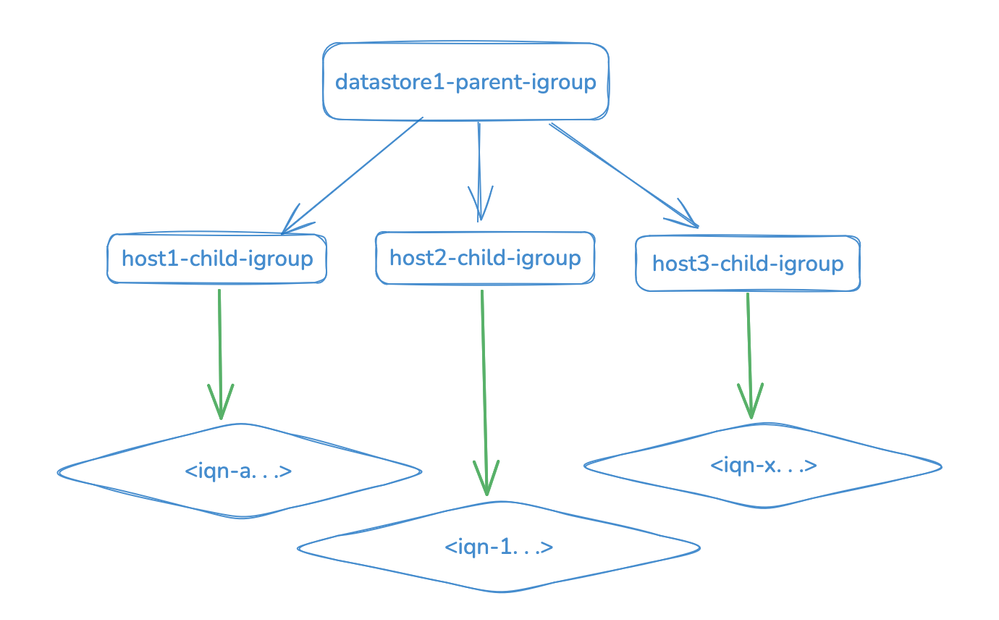

Nested (parent igroup with child igroups) |
Quick comparison
- Flat optimizes for simplicity
- Nested optimizes for isolation + safer lifecycle operations
Flat igroups: benefits and limitations
What flat gets right
1) Fast to deploy, easy to explain: One object per datastore (or shared LUN set) is straightforward for automation and operations.
2) Works for uniform “everyone sees the same storage” clusters: If every host should always see the same LUNs and the environment rarely changes, flat models can run for years.
3) Fewer objects to track: Less naming overhead and fewer group relationships to maintain.
Where flat igroups can create problems
1) Adding or removing hosts becomes more error-prone: Adding/removing a host means updating the shared initiator list. Any drift can cause overexposure or unexpected loss of access.
2) Reuse across datastores can cause unintended visibility: If a flat igroup is reused across multiple workloads, removing a datastore from one host may not fully remove that host’s access path. This can leave behind unwanted visibility and make audits harder.
3) Cleanup operations become less precise: Many cleanup actions can affect multiple hosts when they depend on a shared initiator group: one workflow for one host may affect others still using the same group.
4) Least-privilege access becomes harder to maintain for host-specific or workload-specific LUNs: The moment a design includes LUNs meant for only one host (or one subset of hosts), a flat group makes it easy for other hosts to discover those LUNs during a rescan—even if they shouldn’t.
Flat iGroups are most problematic in multi-host clusters with frequent mount and unmount activity, host-specific LUNs, strict compliance requirements, or workflows that require selective cleanup without affecting neighboring hosts.
Nested initiator groups: a better model for isolation
In a nested model, each host gets its own child initiator group, containing only that host’s initiators. A parent group represents the datastore/workload grouping for usability and reuse.
Why nested is a safer default in dynamic environments
1) Host-level isolation becomes the natural boundary: Visibility aligns to physical host boundaries. Host-specific LUNs map only to that host’s child group.
2) Targeted operations with less cross-host impact: Unmount, rescan, and cleanup workflows become host-scoped. You avoid cross-host surprises caused by shared initiator lists.
3) Cleaner access lifecycle (less drift, fewer stale initiators): When a host is moved or decommissioned, changes can be made at the child-group level. This reduces the chance of stale initiators remaining in a shared group.
4) Stronger least-privilege story for audits: The model is easy to explain: the child group defines the host boundary, and the parent group provides grouping convenience
5) Scales better with cluster growth: Adding another host does not require expanding one large shared list. It simply adds another child group within the same structure.
Trade-offs to acknowledge
1) More objects to govern: Parent + N children means more groups to name, track, and monitor.
2) Slightly higher conceptual load: Operators need clarity: parent is for grouping/reuse, child is for isolation and host-scoped operations.
3) Requires reliable automation to be effective at scale: Manual nested management at scale can be error-prone. The model shines when tooling maintains relationships consistently during lifecycle changes.
why nested igroups prevents unintended discovery
Flat model: where risk appears
- One shared initiator group contains Host1, Host2, and Host3
- A LUN intended only for Host1 is mapped using that same shared group
- Host2 or Host3 performs a storage rescan → the LUN can become visible even when it shouldn’t
Nested model: how it prevents the issue
- Host1-only LUN maps to Host1_Child_iGroup
- Host2 rescans using Host2_Child_iGroup
- Host2 has no masking path to Host1’s LUN → no unintended visibility
This is often the turning point: once host-specific LUNs are introduced, flat initiator groups become much harder to manage safely.
Practical guidance: choosing the right model
Consider A flat model may still be appropriate if:
- All hosts truly need identical LUN visibility
- Host membership changes are rare
- You do not rely on host-specific LUN isolation
- You can enforce strict discipline to avoid risky reuse patterns
Prefer nested if:
- You have multiple hosts but not all need the same LUN set
- You want host-scoped lifecycle operations (mount/unmount/cleanup) without affecting other hosts
- You must satisfy compliance requirements with clear least-privilege boundaries
- You want lifecycle automation to avoid stale initiators and “who can see what” ambiguity
How ONTAP Tools 10 handles hierarchical igroups
In ONTAP Tools 9-style workflows, the flat approach aligned with “simple and centralized access.” However, as deployments expanded to include more dynamic multi-host behaviors, especially environments mixing shared and host-specific LUN usage, the flat model increasingly created:
- Shared-fate operational risk
- Greater exposure to unintended LUN discovery
- Lifecycle complexity during host-level mount/unmount
- Harder auditability of host boundaries
ONTAP Tools 10 introduced nested initiator groups to make host boundaries explicit by design: a parent group maintains the familiar “datastore/workload grouping,” while child groups provide the isolation needed for safe, host-scoped lifecycle operations.
In short: the shift is not cosmetic naming. It is a deliberate move from “one shared list of initiators” to “host-scoped access with a datastore umbrella.”
Key takeaways
Flat initiator groups trade simplicity for shared fate: discovery, lifecycle operations, and reuse side effects become coupled across hosts. Nested initiator groups trade a bit more structure for clearer boundaries, safer lifecycle behavior, and a stronger least‑privilege posture—especially in environments where “who should see what” changes over time.
