Enterprises running Microsoft SQL Server on Google Cloud are constantly looking for ways to simplify architectures, improve resilience, and reduce total cost of ownership (TCO). Traditionally, conversations around cost optimization have often pushed teams toward choosing one high‑availability deployment model over another—such as SQL Server Failover Cluster Instances (FCI) instead of Always On Availability Groups (AOAG)—primarily to control infrastructure sprawl and licensing costs.
In practice, however, customers choose SQL deployment patterns for many reasons beyond cost alone, including application architecture, recovery objectives, operational preferences, and scale requirements. The good news is that cost optimization does not have to come at the expense of architectural choice.
With Google Cloud NetApp Volumes (GCNV), organizations can significantly reduce SQL Server TCO regardless of whether they deploy SQL Server using FCI or AOAG. By modernizing shared storage, simplifying data management, and improving infrastructure efficiency, GCNV enables customers to unlock cost savings while continuing to use the SQL Server high‑availability model that best fits their solution needs.
In this blog, we explore how Google Cloud NetApp Volumes helps cut SQL Server TCO, highlight where the savings come from, and show how both FCI and AOAG deployments can benefit—allowing you to optimize cost without being forced into a one‑size‑fits‑all architecture.
1) The Core Problem: Storage Performance Forces Oversized VMs
In many cloud designs, VM size is chosen not for CPU, but to hit storage throughput and IOPS targets. For example, Hyperdisk Balanced requires a 32‑vCPU VM to achieve 100K IOPS / 1,600 MiB/s for SQL, while GCNV Flex delivers equivalent or better performance with only 8 vCPU because performance is decoupled from compute.

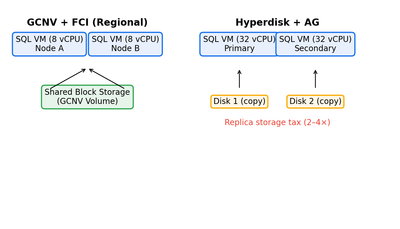

Figure 1. Architecture comparison: GCNV + FCI (left) vs Hyperdisk Balanced + AG (right).
2) How GCNV Shrinks the SQL Cost Stack
Google Cloud NetApp Volumes (GCNV) helps reduce SQL Server costs by addressing inefficiencies across compute, storage, licensing, and operations—without forcing a specific high‑availability architecture choice.
Decouple Compute and Storage
GCNV separates storage from compute, allowing each to scale independently. This removes the need to provision additional vCPUs just to meet storage performance requirements and avoids CPU‑to‑disk coupling that drives unnecessary infrastructure cost.
Right‑size SQL Server Compute
With shared, high‑performance storage provided by GCNV, SQL Server virtual machines can be sized based on actual workload demand (for example, P99 performance) rather than peak seasonal events. Compute can be temporarily scaled up for short‑term spikes (such as holiday traffic) and scaled back down afterward. In many environments, this enables a reduction from higher core counts (for example, 32 vCPUs) to smaller configurations (such as 8 vCPUs), significantly lowering ongoing compute spend.
Reduce SQL Server Licensing Costs
Smaller VM sizes translate directly into fewer licensed SQL Server cores. This can materially reduce SQL Server licensing costs, particularly for environments running SQL Server Enterprise Edition.
Note: If your application does not rely on Enterprise‑only features, consider moving to SQL Server Standard Edition. SQL Server Failover Cluster Instances (FCI) do not require Availability Group features and can still deliver high availability with RPO = 0 seconds and RTO under 60 seconds, at a lower per‑core licensing cost.
Avoid Replica Storage Overhead
When using FCI with shared storage on GCNV, databases are stored once rather than duplicated across multiple replicas. This eliminates the typical 2–4× storage overhead associated with replica‑based architectures, helping control storage growth and cost.
Offload Backup and Disaster Recovery
GCNV enables application‑consistent backups using T‑SQL–based snapshots and supports cross‑region replication at the storage layer. This offloads backup and disaster recovery processing from SQL Server compute, reducing CPU overhead and minimizing the need for additional SQL Server instances dedicated to backup or DR workloads.
3) TCO Example (us‑central1) for mixed OLTP workload
Hyperdisk Balanced + AG + SQL Enterprise totals $25,458/month (compute $23,571, storage $1,887). GCNV Flex + FCI + SQL Standard totals $14,148/month (compute $5,893, storage $8,255). Net savings: $11,310/month — a 44% TCO reduction in this example.

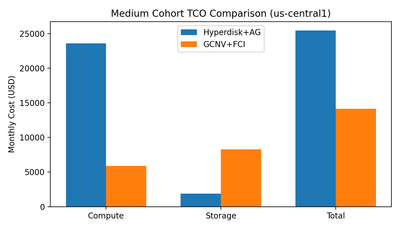

Figure 2. Mixed OLTP workload (<1600MiB/s throughput) monthly cost comparison.
4) Why Performance Stays High on Smaller VMs
GCNV provides up to 160,000 IOPS and 5 GiB/s throughput with <1 ms latency, independent of VM size, so DBAs do not need multiple disks, per‑disk tuning, or multi‑writer workarounds. Hyperdisk performance, by contrast, depends on available CPU on the VM to drive I/O and number of disk connections throttled by VM-SKU type. Refer: Link1; Link2

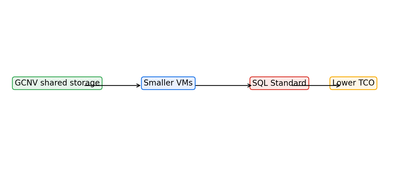

Figure 3. Value chain: shared storage → smaller VMs → SQL Standard → lower TCO.
5) When to Choose FCI vs AOAG
Choose FCI on GCNV when you want lowest TCO, instance‑level protection (jobs, logins, agent), and do not need read‑scale.
Choose AOAG when you need readable secondaries or multi‑DB geo read‑scale and accept higher licensing/compute/storage costs.
6) Practical Migration Notes
- Lift‑and‑shift from on‑prem SAN layouts maps directly to GCNV LUNs; keep data/log/tempdb separation.
- Right‑size with C4 or N4 compute SKUs: for this Medium OLTP mixed workload example, 8 vCPU with regional GCNV volume meets the 100K IOPS / 1,600 MiB/s target.
- Use regional volumes for HA; for cross‑region DR, use async replication and automate failover for ~minutes‑level RTO.
Conclusion
Choosing the right SQL Server high‑availability architecture should be driven by your application requirements, operational model, and business objectives—not by fear of cost inefficiencies. Whether your solution is built on SQL Server Failover Cluster Instances or Always On Availability Groups, Google Cloud NetApp Volumes enables meaningful TCO reduction by consolidating storage, simplifying operations, and improving infrastructure efficiency across both deployment patterns.
Rather than pushing a single architectural path, GCNV gives customers the flexibility to optimize costs while preserving design freedom. The result is a SQL Server environment on Google Cloud that is resilient, scalable, and economically efficient—without compromise.
To see how much you can save in your own environment, try the free, self‑serve SQL Server TCO Calculator from NetApp. In just a few minutes, you can model your current deployment and quantify the potential cost savings achievable with Google Cloud NetApp Volumes.
👉 Start your TCO analysis today: https://www.netapp.com/google-cloud/sql-calculator/
Learn more https://www.netapp.com/media/157610-sb-4482-cut-sql-server-costs-google-cloud-netapp-volumes.pdf
