EF & E-Series, SANtricity, and Related Plug-ins

Error when configuring E-Series 2800 DNS with Ansible netapp_e_mgmt_interface

__mattb__
2,105 Views

Hi I'm trying to configure primary and secondary DNS with the netapp_e_mgmt_interface module.



My Playbook is as follows:



- name: Configure DNS interfaces 1 for controller A
netapp_e_mgmt_interface:
api_url: "{{ api_url }}"
api_username: "{{ api_username }}"
api_password: "{{ api_password }}"
ssid: "1"
validate_certs: no
controller: "A"
name: "1"
dns_config_method: static
dns_address: "{{ site_local_dns_primary }}"
dns_address_backup: "{{ site_local_dns_primary }}"



However I'm getting the error "We could not find an interface matching [1] on Array=[1]."

I've tried using the loops as in the example but don't appear to be getting anywhere.  Can anyone help

1 ACCEPTED SOLUTION

swartzn
2,090 Views

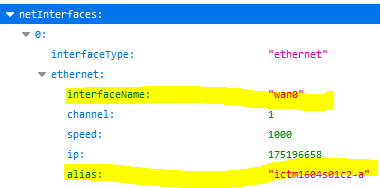

Unfortunately the example is wrong. You need to either change the 'name' parameter to 'channel' or use the controller's interfaceName or alias. Sorry for the confusion.




View solution in original post

3 REPLIES 3

swartzn
2,091 Views

Unfortunately the example is wrong. You need to either change the 'name' parameter to 'channel' or use the controller's interfaceName or alias. Sorry for the confusion.




__mattb__
2,088 Views

Thanks for the reply, yes setting - channel: "1" seemed to fix the error.



I'm confused though why it's a requirement to select a channel or interface at all as in the GUI, DNS settings are at the controller, not the interface level.



Should I just configure DNS on channel 1 for each controller?

swartzn
2,080 Views

Yes, that will work. You'll only need to set the DNS settings for one interface. I understand the confusion but that's just the way the module was structured. The module was designed with the focus on the interface's state not the controller's.
