Steps to Add DS2246 with FAS2750

[PunitWaghela]

We have FAS2750 and having 2 nodes. It has also 2 shelves i.e DS224C. Now we want to add DS2246 to FAS2750. Can anybody help me with step of How to add DS2246 shelf to FAS2750?

[andris · Accepted solution]

See this knowledge base article...

How to cable an IOM12E platform with IOM6 and IOM12 storage shelves in Multi-Path HA

[junwang]

Hi PunitWaghela,

Firstly,See this knowledge base article.

How to cable an IOM12E platform with IOM6 and IOM12 storage shelves in Multi-Path HA

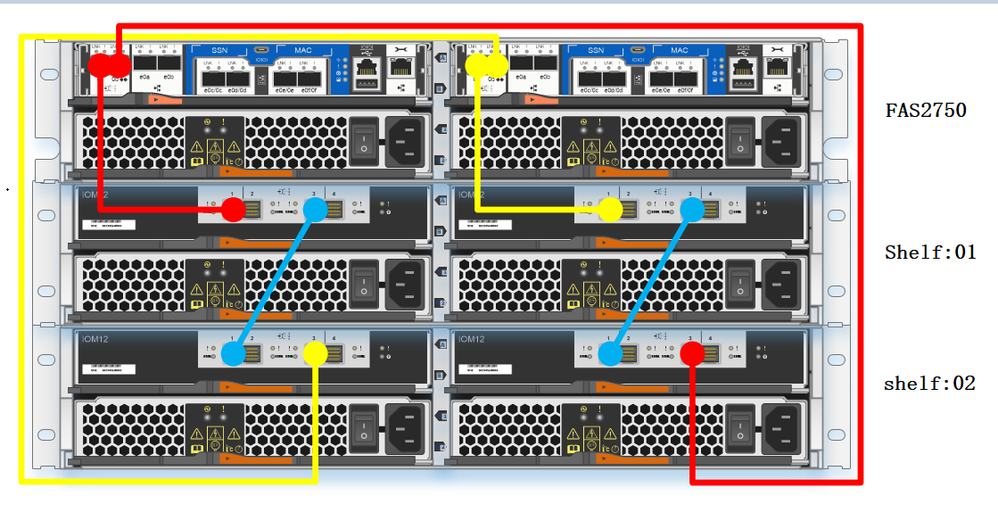

Connect the SAS cable as shown in the following figure.

After connecting the SAS cable, Enter the system node run - node * - command sysconfig - a to see the disk and shelf.
