The most awaited NetApp ONTAP Connector with Cisco Intersight Technical Preview is out and comes with exciting new approach to manage your FlexPod from a single pane of view.
Cisco Intersight is the Cloud based system management as a service that really allows IT to operate at scale at speed beyond human limitations. Cisco Intersight capabilities include Intuitive experience, enhanced support, proactive guidance, secure and extensible SaaS. Through Device Connector Technology Cisco Intersight extends these capabilities to third party devices. VMWare Integrations are already available in Cisco Intersight using this technology. NetApp ONTAP connector is integrated with Cisco Intersight Assist, to extend these capabilities for NetApp ONTAP storage environment.

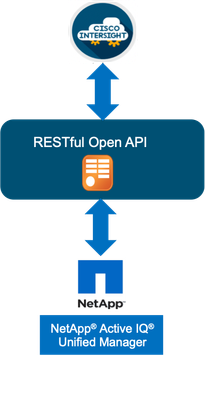

The architecture of the Integration starts with the instance of Active IQ Unified Manager deployed in your datacenter to manage one or more ONTAP Clusters. Cisco Intersight assist with NetApp ONTAP Connector is deployed as a virtual appliance on-premises. This ONTAP Connector acts as your onsite data collector to transmit data to the cloud. The ONTAP connector is really mapping the Intersight APIs to that of AIQ UM and your ONTAP storage by following NetApp’s latest REST API standards and object representations. So once your storage data is up there with Intersight, UI-SDK (built for NetApp Storage Inventory) enables you to get full access to the key attributes of the NetApp storage from Intersight Inventory view.
This collaboration with Cisco is really looking to make sure that we grow the ONTAP storage support with Cisco Intersight but do that in a way that is complementary to NetApp storage Management tools that you would traditionally have in your environment with NetApp and make sure that in doing so we are well represented into the Intersight eco-system.
Here is a link to the video to can help you Get started with the Tech Preview of NetApp ONTAP Storage for Cisco Intersight.
https://tv.netapp.com/detail/video/6228082818001
- Minimum Tech Preview Hardware & software Requirement
- Lab Configuration minimum requirements
- Lab Topology Examples
- Claim NetApp ONTAP Storage from Cisco Intersight
- Tech Preview Feature Introduction
- Use Cases
Minimum Tech Preview Hardware & software Requirement
|
Component |
Type |
Version |
|
Hypervisor |
VMware vSphere |
7.0 |
|
6.7 |
||
|
Cisco Intersight
|
Advantage Tier |
Monitoring NetApp Storage from Cisco Intersight |
|
Premium Tier |
Orchestrate workflows across physical compute, storage and virtualization environment. |
|
|
Cisco UCS |
Standalone (without Fabric Interconnect) C-Series M5 claimed in Intersight |
Cisco IMC Software 3.1 and later |
|
Standalone (without Fabric Interconnect) C-Series M4 claimed in Intersight |
Cisco IMC Software 3.0(4) and later |
|
|
Cisco Nexus/MDS |
Cisco MDS, Cisco Nexus, Cisco Nexus-UP |
Nexus 9.3(5), MDS 8.4(1a) |
|
NetApp Array |
AFF A400, A800, A700, A700s, A300, A220, C190 |
ONTAP 9.7 |
|
FAS 9000, 8700, 8300, 8200, 2700 |
ONTAP 9.7 |
|
|
NetApp Software |
AIQ Unified Manager |
9.8 (Will be available by Tech Preview start) |
Lab Configuration minimum requirements
Lab Topology Examples

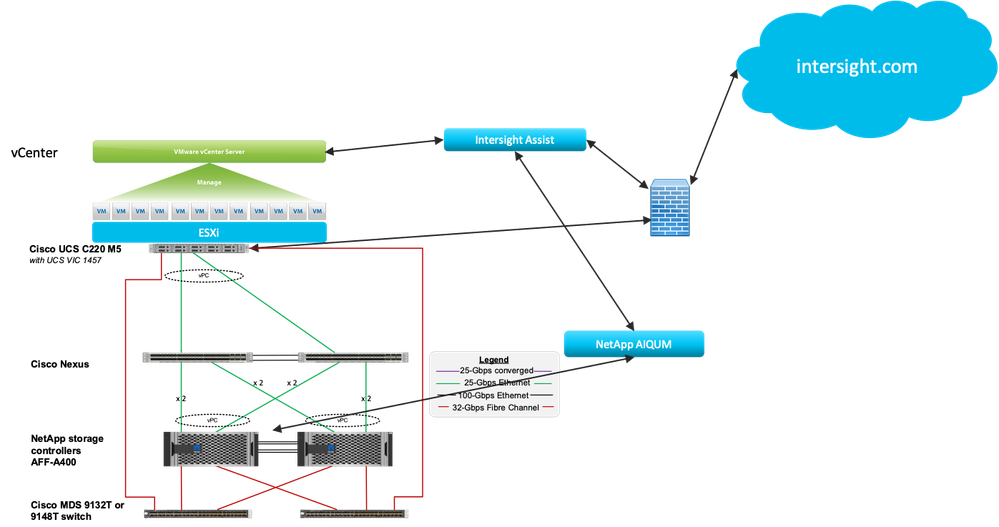

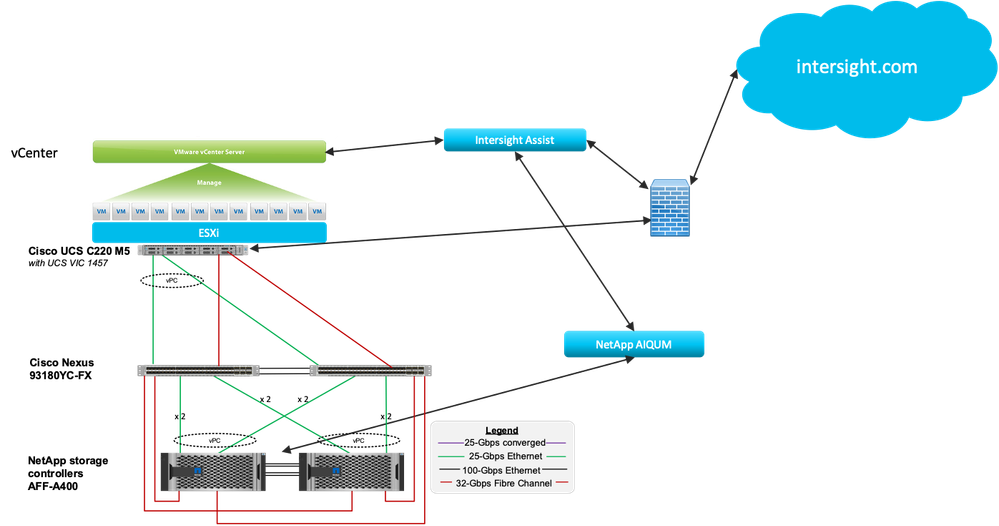

This example is similar to the one in the previous slide, except instead of using FCoE from the VIC, a third-party FC card from Emulex or Qlogic (listed as supported in the C220 Spec Sheets) is used to connect the FC to the 93180YC-FX which is again used for both SAN and LAN switching. Since this is a Tech Preview, it would be acceptable to use only one switch and one storage controller.

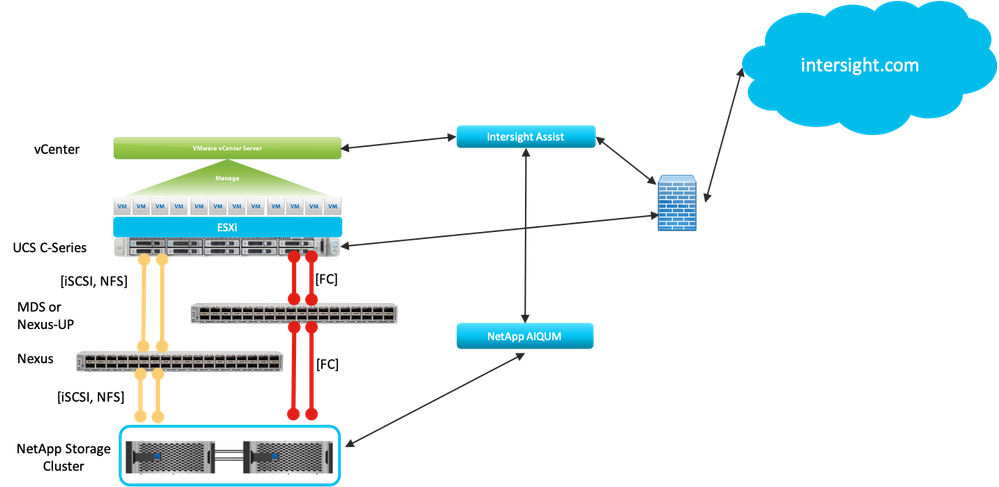

In this example, an MDS switch is used for the FC switching. Because of this any Nexus switch that supports 10 or 25 Gbps interfaces can be used for the LAN switching. Again, since this is a Tech Preview, it would be acceptable to use only one switch and one storage controller.
Claim NetApp ONTAP Storage from Cisco Intersight
Here is a link to video that demo's the claim process.
https://tv.netapp.com/detail/video/6228080442001
Start with using your existing NetApp Active IQ Unified manager 9.8 instance and connect to Cisco Intersight.
Note: Ensure that API Gateway is enabled in Active IQ Unified Manager(Settings / General / Feature Settings)
Step 1: License tier Check.
- Select Settings->Licensing
- A minimum of Advantage tier license is required to enable monitoring of the NetApp storage object via widget and from Storage inventory.
- Premium tier licensee is required to orchestrate workflows across physical compute, storage and virtual environment.
Step 2: Claim the AIQ UM device
- In Admin TAB Select Targets-> Claim a New Target
- Select Storage -> NetApp Active IQ Unified Manager and Click Start
- Enter the HostName/IP for the device
- Enter the user credentials and click Claim
- Ensure that the storage device status is connected.
Tech Preview Feature Introduction
The primary features introduced in this release of NetApp ONTAP Storage Integration with Cisco Intersight are monitoring of NetApp Storage Inventory and perform workflow Orchestration for NetApp ONTAP storage from Cisco Intersight via NetApp AIQUM device, which is claimed by Cisco Intersight.
Support for SAN and NAS storage protocols
Supports SAN (FC, ISCSI) and NAS(NFS) Protocols, Meaning Both SAN and NAS objects can be now monitored and managed from Cisco Intersight.
Monitoring ONTAP Storage
Here is a link to video that demo's the Monitoring of NetApp ONTAP Storage from Cisco Intersight.
https://tv.netapp.com/detail/video/6228096841001
ONTAP Storage can be monitored from Cisco Intersight from the Dashboard widgets or Storage inventory tab.
Storage Widgets:
Three Storage widgets are available in this release to monitor the
- Storage Version Summary
- Top 5 Arrays by Utilization
- Top Volumes by Utilization
Storage Version Summary: View the ONTAP Model and version summary of all the ONTAP storage arrays connected via the Active IQ Unified Manager

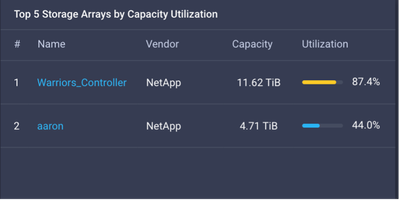

Top 5 Arrays by Utilization: List of the top 5 ONTAP Storage Arrays based on utilization

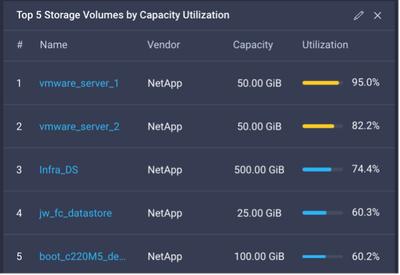

Top 5 Volumes by Utilization: List of the top 5 ONTAP Storage Volumes across all the ONTAP Clusters in the storage inventory listed based on Utilization.

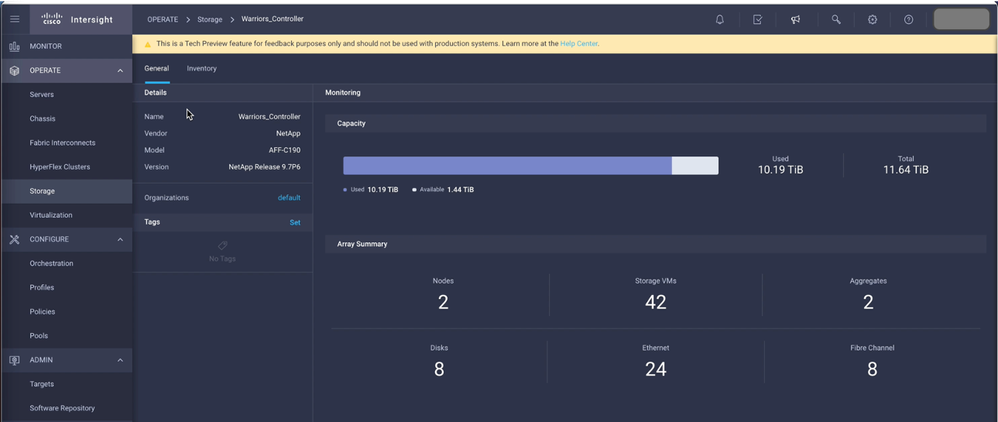

NetApp ONTAP Storage Inventory
ONTAP Storage Inventory presents a general view and an Inventory view. NetApp Storage objects in the inventory view are listed in two Sections
Hardware Section:
- Nodes
- Physical Ports (Ethernet and Fiber Channel)
- Disks
Logical Section:
- Storage Virtual Machine
- Aggregates
- Logical Interfaces
- Volumes
- LUNs
- Snapshots
- SAN Initiator Groups
- Export Policy
- Licensee
Storage Inventory General View
Storage Orchestration:
Below is a link to demo Orchestration of NetApp ONTAP Storage Workflows from Cisco Intersight
https://tv.netapp.com/detail/video/6228095945001
Cisco Intersight enables Orchestration of workflows across the physical Compute, Storage and Virtualization environments. Reference workflows are available out of box for you to orchestrate NetApp Storage objects workflows and Storage workflows for VMware VMFS and NFS datastores.
- The New, Update and Remove Hypervisor Datastore workflows combine Storage and Virtualization tasks and enable you to create, expand and delete both VMFS and NFS datastores
- The New, Remove and Update Storage Host workflows enable you to manage SAN Initiator groups
- The New and remove export Policy workflows enable you to manage Export Policies required NFS
- The New Storage Virtual Machine workflows enables you to create SVM, enable FC, ISCSI and NFS services and gives you an option to create a SVM Management LIF.
- The New Storage Logical Interfaces workflows enable you to create either or both IP and FC logical interfaces for your SVM.
- Using the vSphere OVF deploy workflow you can deploy a Virtual Machine using an OVF template on NetApp Storage configured as NFS or VMFS datastore.
Reference Workflows
|
Reference workflow |
#Tasks |
|
New HyperVisor DataStore |
1. Create New Storage LUN or Volume. |
|
Update HyperVisor DataStore |
1. Get Hypervisor Datastore |
|
Remove HyperVisor DataStore |
1. Remove a VMFS DataStore |
|
New Storage VM |
1. Create New SVM and services |
|
New Logical Interfaces |
1. Create New IP Interfaces |
|
New Storage Host |
1. Add new Storage host. |
|
Upgrade Storage Host |
Disconnect or Connect WWNs or IQNs |
|
Remove Storge Host |
1. Remove WWNs or IQNs |
|
New Export Policy |
1. New Storage Export Policy. |
|
Remove Export Policy |
1. Remove Export Policy |
|
Create VM from OVF on Hypervisor datastore |
1. Create New VM on a NFS or VMFS datastore. |
20 NetApp ONTAP Storage Tasks are available in the Cisco Intersight storage Library. Storage Administrators can use these tasks and build custom-defined workflows as per your operational needs
NetApp Storage Management Tasks Implemented from Cisco Intersight
|
Task Name |
Task Details |
|
Add Storage Export Policy to Volume |
Add an export policy to a volume with Storage Virtual Machine name, Volume name, Export Policy name as the inputs. On successful execution Volume name and Export policy added are generated as outputs. |
|
Connect Initiators to Storage Host |
Connect a WWN or IQN list to storage host or iGroup. Inputs are host or iGroup name and list of WWNs or IQNs. Outputs generated are host/iGroup name created, IQN or WWN list associated with the host or iGroup. Task can be used with either WWNs or IQNs. |
|
Expand Storage LUN |
Expand a storage LUN with LUN path, Storage Virtual Machine name and LUN size as the inputs. On successful execution path and size of the expanded LUN are generated as outputs. |
|
Expand Storage Volume |
Expand a volume with volume name and size as inputs. On successful execution, volume name and size are generated as outputs. |
|
Find NetApp IGroup LUN Map |
Find if an Initiator Group is mapped to a LUN with give initiator Group name, Storage Virtual Machine name as the inputs. If initiator Group is mapped to any LUNs then initiator Group name and list of LUN names are generated as outputs, else task will fail with an error "No LUN mapped to the Initiator Group". |
|
New Storage Export Policy |
Create a storage export policy with storage virtual machine name, export policy name, Client Match List, Superuser Security Type, list of protocols, list of Read Only export policy rules, list of Read Write export policy rules as the inputs. On successful execution name of the export policy created is generated as output. |
|
New Storage Fibre Channel Interface |
Create a FC interface with interface name, Storage Virtual Machine name, Data Protocol and location properties as the inputs. On successful execution Interface Name, WWNN, WWPN are generated as outputs. |
|
New Storage Host |
Create a storage host or iGroup with host or iGroup name and list of WWNs and IQNs to be associated with it as input. Outputs are host or iGroup name, and associated IQN or WWN list. |
|
New Storage IP Interface |
Create a storage IP interface with IP interface name, interface IP address, interface netmask, ipspace name, storage virtual machine name and location properties as the inputs. On successful execution interface name, interface IP address, interface netmask is generated as outputs. |
|
New Storage LUN |
Create a storage LUN with inputs as LUN name, Volume name, Operating System name, Storage Virtual Machine name, size of LUN. On successful execution LUN path, NAAID and LUN capacity are generated as outputs |
|
New Storage LUN ID |
For NetApp ONTAP Storage: Connect storage LUN to a iGroup with Inputs as LUN name and iGroup name. On successful execution iGroup name, LUN name and LUN number are generated as outputs. NOTE: iGroup is referred as Host for input. |
|
New Storage Virtual Machine |
Create a Storage Virtual Machine with Storage Virtual Machine name and list of protocols to be enabled as inputs. |
|
New Storage Volume |
Create a storage volume with volume name and volume size as inputs. Generates the volume name and volume size as outputs. |
|
Remove Storage Export Policy |
Remove a storage export policy with export policy name and storage virtual machine name as the inputs. On successful execution name of the export policy removed is generated as output. |
|
Remove Storage Host |
Remove a storage host or iGroup with host or iGroup name as input. On successful execution, the host or iGroup name deleted is generated as output. |
|
Remove Storage LUN |
Remove a LUN with LUN path and storage virtual machine name as the inputs. On successful execution the path for the LUN removed is generated as output. |
|
Remove Storage LUN ID |
For NetApp ONTAP Storage: Disconnect Storage LUN from a iGroup with LUN name and iGroup name as inputs. On Successful execution iGroup name and the LUN Path are generated as outputs. NOTE: iGroup is referred as Host for input. |
|
Remove Storage Volume |
Remove Storage Volume with Volume name as input. On Successful execution, the deleted Volume and Snapshot name is generated as output For NetApp ONTAP storage only deleted Volume name will be listed. |
Use Cases
Use Case 1: View the NetApp Storage Inventory and Widgets after setup
- Deploy Intersight Assist OVA (OnPrem task in customer vCenter Environment)
- Add NetApp AIQ UM devices in Intersight Assist
- Navigate the NetApp Storage Inventory
- Add Widgets for Storage on Monitor Dashboard
Use Case 2: NetApp Storage orchestration to setup Storage Virtual Machines/ logical Interfaces/ Volume/ LUN / Host or iGroup / Export policy
- Add vCenter target to Intersight via Intersight Assist (OVA deployed in Use Case 1 above)
- Create storage SVM/ IP or FC Interfaces/ export policy/ Host(iGroup)/ Volume/ LUN on NetApp Storage
- Add host to vCenter cluster and scan for Datastore in vCenter
Use Case 3: Workflow Designer Free Form
- With NetApp Storage Added + vCenter environment you can custom build workflows using the tasks provided in the workflow designer. Navigate to the Orchestration tab in Intersight and select Create New Workflow.
To benefit from all these features in Cisco Intersight, claim your existing NetApp Active IQ Unified manager 9.8 instance and connect to Cisco Intersight.
