In today's cloud-centric world, efficient and reliable data management is paramount for businesses of all sizes. Google Cloud NetApp Volumes has robust built-in data protection, including backup policies, snapshot schedules, and replication that you can apply to volumes through the UI, API, CLI or through automation. However, at times you may need to integrate the data protection directly within your Linux Kubernetes cluster. For example, you might want your DevOps group to complete the tasks, you might need to back up applications together with the volumes, or you might want to self-manage the backups and restorations directly from the cluster to your own self-managed bucket in Google Cloud.
Google Cloud NetApp Volumes, along with NetApp® Trident™ and Trident protect, offers a solution to address these needs. This blog covers how to install, configure, and use Trident protect with Google Cloud NetApp Volumes, offering application and data protection schedules for backups, snapshots, and restoration within Kubernetes in your Google Cloud environment. We use Kubernetes custom resources (CRs) as examples, but the Trident protect CLI can be used as well. You can find more information on the Trident protect CLI in the documentation.
What is Google Cloud NetApp Volumes?
Google Cloud NetApp Volumes is a service that combines the capabilities of NetApp storage and data management with Google Cloud’s infrastructure and services. It allows users to deploy high-performance, scalable storage in the cloud for a wide range of workloads, including databases, analytics, and enterprise applications. Google Cloud NetApp Volumes provides features like cloning, encryption, and data protection to help organizations manage their data effectively in the cloud environment. It also enables users to seamlessly move and manage their data between on-premises environments and Google Cloud, offering a flexible and efficient storage solution for various cloud-based applications.
What is Trident protect?
Trident protect enhances data management in Kubernetes clusters by providing advanced data protection features not included with Trident or other CSI-compliant provisioners. Although Trident can create manual snapshots, Trident protect can allow you to create a snapshot schedule. In addition, Trident protect allows you to create both volume and application backups in your self-managed bucket in Google Cloud Storage. You can even filter the exact resources you want to back up. You can then restore that backup to either the same or a new Kubernetes cluster.
With Trident protect and NetApp Volumes, you can:
- Create snapshots. Create and manage consistent point-in-time snapshots of your applications and volumes for quick recovery from accidental deletions or other outages.
- Perform backups. Back up the application and the volume together, allowing for easy restoration of the entire service in the same or a new Kubernetes cluster.
- Restore. Restore applications and persistent volumes (PVs) from snapshots or backups.
- Automate. Automate data protection tasks based on predefined policies created with a CR manifest file, reducing manual effort and potential errors.
Installation and Configuration
We’ll show you how to complete a basic installation and configuration of Trident protect. Our example uses a Google Kubernetes Engine (GKE) cluster, but other Kubernetes distributions also work with NetApp Volumes. The Kubernetes cluster must be running with Linux worker nodes. (For more detailed information, see the Trident protect documentation.)
Prerequisites
- A Kubernetes cluster in Google Cloud with Trident installed and running with a back end to a storage pool in Google Cloud NetApp Volumes. For information on setting up Trident with NFS, see NetApp Trident with Google Cloud NetApp Volumes. Cloud identity can be used for Trident on a GKE cluster.
- kubectl access to the Kubernetes cluster.
- Permissions to create service accounts and buckets in Google Cloud.
- An installed application with a PV (created by Trident) that you wish to protect in a nondefault namespace.
- A snapshot class running on the cluster. You also may need to install a volume snapshot controller if it doesn’t come automatically installed with your Kubernetes distribution. GKE has a snapshot controller installed by default.
Step 1: Install Trident protect
After Trident is up and running with a configured back end, install Trident protect as shown below. Replace cluster-1-protect with the name of the cluster to which you’re installing Trident protect:
~$helm install trident-protect netapp-trident-protect/trident-protect --set clusterName=cluster-1-protect --version 100.2506.0 --create-namespace --namespace trident-protect
NAME: trident-protect
LAST DEPLOYED: Fri Jul 18 09:56:57 2025
NAMESPACE: trident-protect
STATUS: deployed
REVISION: 1
TEST SUITE: None
If you need to customize the installation, refer to Customize Trident protect installation.
Step 2: Create a bucket
You’ll need a bucket in Google Cloud to store the backups and the metadata from the backups and snapshots. (The snapshots are stored on Google Cloud NetApp Volumes itself).

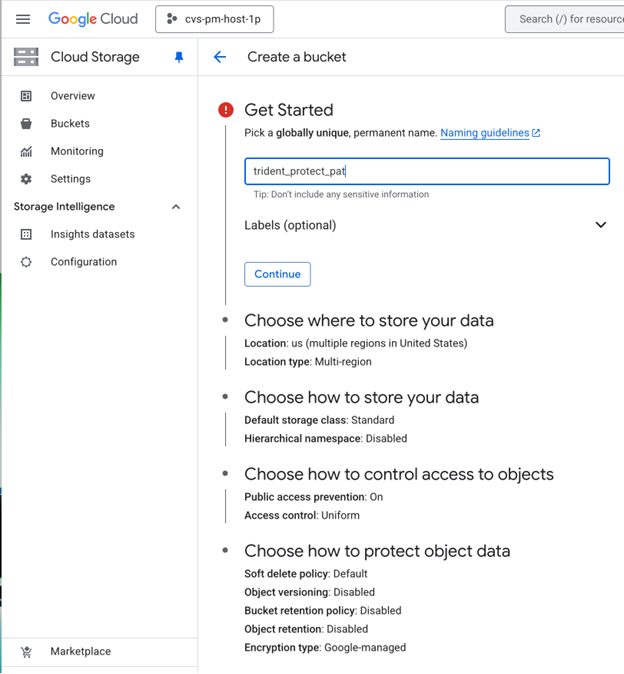

Create a bucket in Google Cloud storage using the steps in the Create a bucket documentation. If you want to protect and restore clusters across regions, the bucket must be multi-region. An example is shown below.
Step 3: Create a service account in Google Cloud and download a key

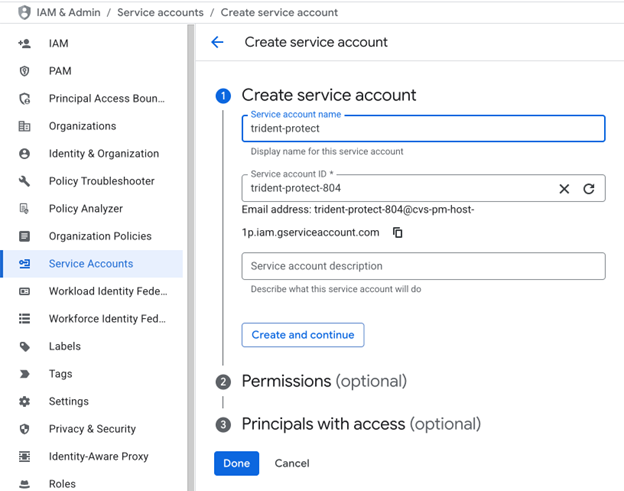

Create a new service account in Google Cloud following the steps in Create service accounts, and assign the Storage Admin role. An example is shown below.

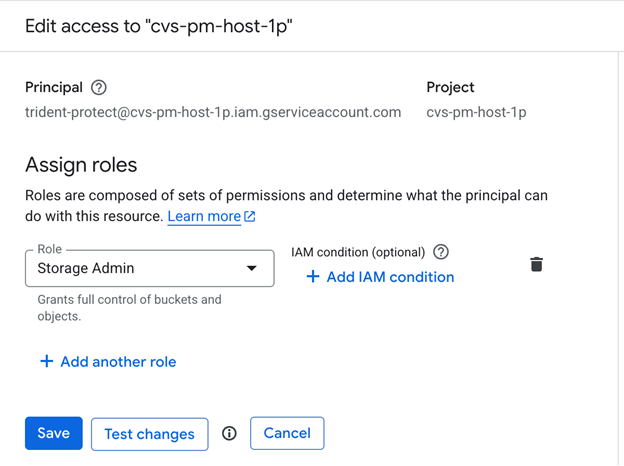

Assign your new service account Storage Admin rights as shown here:
You should see the proper role assigned under IAM.
Create a key for the service account and download the key. Go to IAM & Admin > Service Accounts, select your new service account, and then select Keys. Create a new key, which will automatically download. Keep this key in a safe place. It will be used to create a secret to allow Trident protect access to the bucket.
Step 4: Create an AppVault CR and apply it
You need to connect Trident protect to the bucket by creating a Kubernetes CR called AppVault. This is where the backups and snapshot metadata are stored.
The backups are created by using a data mover. You have the choice of using Kopia (default) or restic. The Kopia or restic pods are booted only during backups and are removed when the backup is completed.
Optionally, you can also create your own custom password for the data movers. If you choose to create your own password, follow the steps in the Data Mover repository passwords documentation. In this case, you’ll need to create a secret with your Base64-encoded password. The data mover will automatically be configured with this password upon startup. The secret will need to be stated in the AppVault to enable the custom password. Otherwise, a default password will be used.
A secret is also needed to access the bucket. Create a secret from the key you downloaded in step 3. Replace trikey with the name you want for your secret, and replace trident-protect-key.json with the name of your key.
~$kubectl create secret generic trikey --from-file=credentials=trident-protect-key.json -n trident-protect
Create a manifest file for the AppVault that references your key, and also your data mover secret, if you created one. (In this example, we didn’t create a data mover password.) Make the appropriate changes for your environment.
appvault.yaml
apiVersion: protect.trident.netapp.io/v1
kind: AppVault
metadata:
name: gcp-trident-protect-src-bucket
namespace: trident-protect
spec:
# dataMoverPasswordSecretRef: my-optional-data-mover-secret
providerType: GCP
providerConfig:
gcp:
bucketName: trident_protect_patd
projectID: cvs-pm-host-1p
providerCredentials:
credentials:
valueFromSecret:
key: credentials
name: trikey
Apply the manifest file, and check that it’s active and accessible.
~$kubectl create -f appvault.yaml
appvault.protect.trident.netapp.io/gcp-trident-protect-src-bucket created
~$kubectl get appvault -n trident-protect
NAME STATE ERROR MESSAGE AGE
gcp-trident-protect-src-bucket Available 10s
You’re now ready to start protecting applications and their data.
Set up data protection
Trident protect uses CRs to define and protect Kubernetes resources.
Step 1: Define the application
Create a CR that defines the application to protect. The application can be anything in a specific namespace (or multiple namespaces), specific objects in the namespace (such as persistent volume claims [PVCs] and PVs), or objects identified by labels. You can also add non-namespaced resources such as storage classes to the application CR. (For more information, see the documentation.)
In the following example, we choose to define an application as all objects in the namespace called blog. If a PVC is included, the PV it’s bound to is also included, even though PVs aren’t namespaced.
app.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Application
metadata:
annotations:
protect.trident.netapp.io/skip-vm-freeze: "false"
name: ghost
namespace: blog
spec:
includedNamespaces:
- namespace: blog Starting with Trident protect 25.06, you can easily back up just PVs and PVCs by using resource filters instead of labels. The following example shows how to create a Trident protect application that consists of only PVs and PVCs located in the blog namespace.
volumeonlyapp.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Application
metadata:
name: ghost-volumeonly
namespace: blog
spec:
includedNamespaces:
- namespace: blog
resourceFilter:
resourceMatchers:
- kind: PersistentVolumeClaim
version: v1
- kind: PersistentVolume
version: v1
- kind: VolumeSnapshotClass
version: v1
resourceSelectionCriteria: Include Step 2: Create a manual snapshot or backup
You can now create additional CRs to do snapshots or backups. An example manual snapshot CR would look like the following manifest. Change the values to your names.
snapshot.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Snapshot
metadata:
namespace: blog
name: ghost-snapshot1
spec:
applicationRef: ghost
appVaultRef: gcp-trident-protect-src-bucket
reclaimPolicy: Delete
You can then apply or create the manifest file.
~$kubectl create -f snapshotghost.yaml -n blog
snapshot.protect.trident.netapp.io/ghost-snapshot1 created
~$kubectl get snapshot.protect.trident.netapp.io/ghost-snapshot1 -n blog
NAME APP RECLAIM POLICY STATE ERROR AGE
ghost-snapshot1 ghost Delete Running 17s
~$kubectl get snapshot.protect.trident.netapp.io/ghost-snapshot1 -n blog
NAME APP RECLAIM POLICY STATE ERROR AGE
ghost-snapshot1 ghost Delete Completed 79s

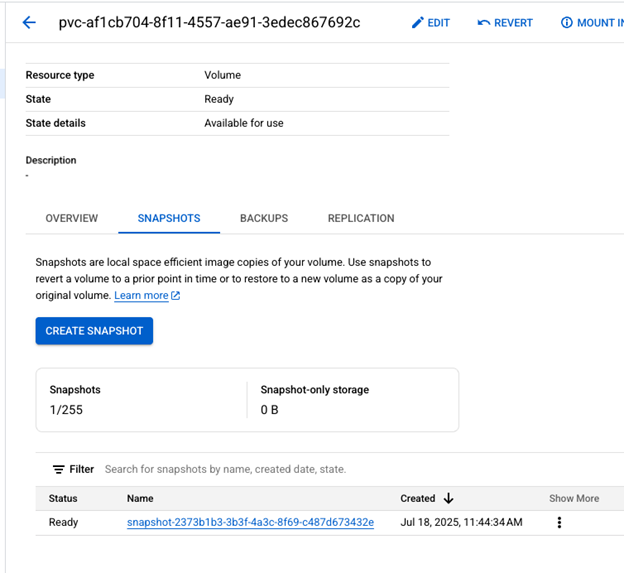

And you can see the snapshot on Google Cloud NetApp Volumes:
Similarly, you can use the Backup CR to create a full or incremental backup. Change the values to your own:
backup.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Backup
metadata:
namespace: blog
name: blog-backup1
annotations:
protect.trident.netapp.io/full-backup: "true"
spec:
applicationRef: ghost
appVaultRef: gcp-trident-protect-src-bucket
dataMover: Kopia
You’ll see the backup running and then completed.
~$~$kubectl create -f backupghost.yaml -n blog
backup.protect.trident.netapp.io/blog-backup created
~$kubectl get backup.protect.trident.netapp.io/blog-backup -n blog
NAME APP RECLAIM POLICY STATE ERROR AGE
blog-backup ghost Retain Running 15s
~$kubectl get backup.protect.trident.netapp.io/blog-backup -n blog
NAME APP RECLAIM POLICY STATE ERROR AGE
blog-backup ghost Retain Completed 4m49s

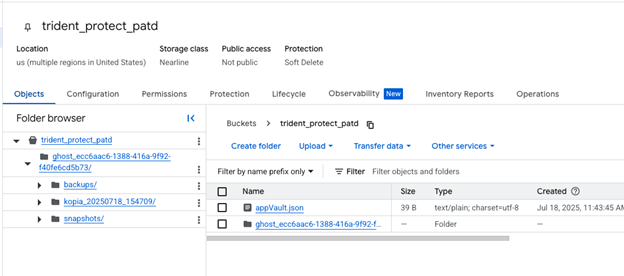

You should also be able to see the backup in the bucket. In addition to the backup data, you’ll see the metadata for snapshots. The actual backup is in the kopia (or restic) folder, whereas the metadata is in the backups folder. Every time a full backup is created, you’ll see a new kopia (or restic) folder. Incremental backups don’t create new kopia or restic folders.
Step 3: Set up scheduled snapshots or backups
As with manual backups and snapshots, you can set up backup and/or snapshot schedules by using a manifest file.
An example of setting up a backup schedule is shown here. In the example, we create an incremental backup every day at 1 minute past midnight, and full backups every Friday. We keep 15 backups and 15 snapshots. The dayofMonth or dayofWeek value can be used only if we choose monthly or weekly backups. (For more information, see the documentation.) Be sure to change the values to match your own environment.
The following example sets up the backup schedule described above:
backupschedule.yaml
---
apiVersion: protect.trident.netapp.io/v1
kind: Schedule
metadata:
namespace: blog
name: ghost-schedule
annotations:
protect.trident.netapp.io/full-backup-rule: "Friday"
spec:
dataMover: Kopia
applicationRef: ghost
appVaultRef: gcp-trident-protect-src-bucket
backupRetention: "15"
snapshotRetention: "15"
granularity: Daily
# dayOfMonth: "3"
# dayOfWeek: "0"
hour: "0"
minute: "1"
And then create it:
~$kubectl create -f trident-backup-schedule-cr.yaml -n blog
schedule.protect.trident.netapp.io/ghost-schedule created
~$kubectl describe schedule.protect.trident.netapp.io/ghost-schedule -n blog
Name: ghost-schedule
Namespace: blog
Labels: <none>
Annotations: protect.trident.netapp.io/full-backup-rule: Friday
API Version: protect.trident.netapp.io/v1
Kind: Schedule
Metadata:
Creation Timestamp: 2025-07-18T15:52:21Z
Generation: 2
Owner References:
API Version: protect.trident.netapp.io/v1
Kind: Application
Name: ghost
UID: ecc6aac6-1388-416a-9f92-f40fe6cd5b73
Resource Version: 1752853941486047002
UID: 48e40996-fdbd-4fe0-9b25-629d440a134f
Spec:
App Vault Ref: gcp-trident-protect-src-bucket
Application Ref: ghost
Backup Retention: 15
Data Mover: Kopia
Day Of Month:
Day Of Week:
Enabled: true
Granularity: Daily
Hour: 0
Minute: 1
Recurrence Rule:
Replication Retention: 0
Snapshot Retention: 15
Events: <none>
Backups are stored in your bucket, up to the maximum specified in your schedule.
Restore the application and volume
What’s the point of backing up if you can’t restore? Trident protect can restore your application with its data to the same namespace or a different namespace on the same cluster. It can also restore to a new cluster. We’ll show you how to restore to a new cluster. (For information about restoring to the same cluster, see the documentation.)
To restore the application, you need the following prerequisites:
- A restoration Kubernetes cluster in Google Cloud with Trident installed and running with a back end to Google Cloud NetApp Volumes. For information on setting up Trident with NFS, see NetApp Trident with Google Cloud NetApp Volumes. Cloud identity can be used for Trident on a GKE cluster.
- A storage class with the same name on the destination cluster. (Alternatively, you could back up the storage class and restore it, but we didn’t do that in the example.)
- kubectl access to the Kubernetes cluster restoring the volume
- Trident protect installed and running according to step 1 of the “Installation and configuration” section, earlier in this blog.
- If you intend to take snapshots or backups, a snapshot class running on the cluster. You might also need to install a volume snapshot controller if it doesn’t come automatically installed with your Kubernetes distribution. GKE has a snapshot controller installed by default.
- A namespace to which the application can be restored.
- An AppVault configured with access to the same bucket where the backups are stored, as shown in step 4 of the “Installation and configuration” section.
From the restoration cluster, list the backups and path of the backup you want to restore if needed. This can be done only with the tridentctl-protect CLI plug-in. (For more information on downloading and using the tridentctl-protect CLI plug-in, see the documentation.)
~$tridentctl-protect get appvaultcontent gcp-trident-protect-src-bucket --show-resources backup --show-paths -n trident-protect
+---------+-------+--------+-------------+-----------+---------------------------+-----------------------------------------------------------------------------------------------------+
| CLUSTER | APP | TYPE | NAME | NAMESPACE | TIMESTAMP | PATH |
+---------+-------+--------+-------------+-----------+---------------------------+-----------------------------------------------------------------------------------------------------+
| | ghost | backup | blog-backup | blog | 2025-07-18 15:48:43 (UTC) | ghost_ecc6aac6-1388-416a-9f92-f40fe6cd5b73/backups/blog-backup_287afff7-b3fb-4fc4-8d19-46cf8e8f3b9d |
+---------+-------+--------+-------------+-----------+---------------------------+-----------------------------------------------------------------------------------------------------+
Create the manifest file to restore the application. It uses a CR called BackupRestore. Be sure to change the values to your bucket name and path to the backup version you want to restore. Also specify the namespace the source was in and the namespace you want the application to be restored to.
restorebackup.yaml
apiVersion: protect.trident.netapp.io/v1
kind: BackupRestore
metadata:
name: myrestore
namespace: blog
spec:
appVaultRef: gcp-trident-protect-src-bucket
appArchivePath: "ghost_ecc6aac6-1388-416a-9f92-f40fe6cd5b73/backups/blog-backup_287afff7-b3fb-4fc4-8d19-46cf8e8f3b9d"
namespaceMapping: [{"source": "blog", "destination": "blog"}]
Apply the restore manifest, and you’ll have the application and its volume on the new cluster. You’ll be up and running in no time!
~$kubectl create -f Backuprestore.yaml -n blog
backuprestore.protect.trident.netapp.io/myrestore created
~$kubectl get backuprestore.protect.trident.netapp.io/myrestore -n blog
NAME STATE ERROR AGE
myrestore Running 13s
~$kubectl get backuprestore.protect.trident.netapp.io/myrestore -n blog
NAME STATE ERROR AGE
myrestore Completed 115s
~$kubectl get pods -n blog
NAME READY STATUS RESTARTS AGE
blog-86694c69bc-lp6fh 1/1 Running 0 72s
~$kubectl get pvc -n blog
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
blog-content Bound pvc-929a277b-4f63-40da-881e-2d1a1916aa55 10Gi RWX gcnv-flex-k8s-nfs <unset> 90s
Your volume will have the same contents as the original volume.
Conclusion
Google Cloud NetApp Volumes with Trident protect offers a compelling solution for businesses seeking to modernize their data management and protection strategies on their Kubernetes clusters in Google Cloud. By combining high-performance file storage and advanced data protection features with Kubernetes, this integrated offering provides the reliability, flexibility, and control necessary to thrive in today’s dynamic IT landscape. Embrace this powerful duo to secure your data and unlock the full potential of your Google Cloud environment.
