Optimizing NetApp backups with Veeam Data Platform

RyanB
NetApp
2,235 Views

Is your data footprint constantly growing? Are you having trouble consistently meeting backup windows for your applications? Providing reliable data protection for large datasets is increasingly difficult and complex for enterprises of all sizes. NetApp and Veeam are excited to announce new functionality in the Veeam Data Platform (VDP) v12.3 that delivers new integration with NetApp® ONTAP® systems to provide efficient data protection for NetApp customers.



The NetApp SnapDiff® feature enables efficient data protection for large datasets. It’s a differencing engine that identifies block-level changes between two volume Snapshot™ copies, and it’s available as a standard feature on ONTAP systems. By integrating with SnapDiff, VDP can deliver fast and efficient NAS backups for NetApp storage, using native ONTAP functionality to identify changed data since the last backup. Here are some key benefits that the new SnapDiff integration provides for VDP and NetApp users:

  • Performance. Using SnapDiff to identify changed files can significantly reduce the time required to successfully back up any ONTAP NAS volume.
  • Efficiency. SnapDiff removes the need for VDP to identify changed files, eliminating a compute-intensive process that consumes valuable system resources.
  • Simplicity. Using this new functionality is as easy as clicking a checkbox!

Here’s an overview of how the process works.

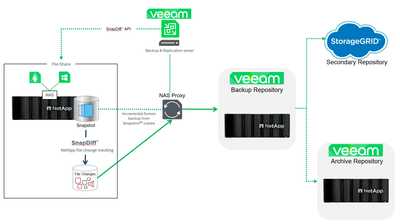

Figure 1) VDP uses SnapDiff to efficiently manage NAS backups for NetApp storage.



Configuring a SnapDiff backup in VDP is the same simple, user-friendly experience you expect from Veeam. You simply click a checkbox to enable change file tracking when creating a backup job, and VDP uses SnapDiff when running NAS backup jobs for ONTAP systems. For a detailed explanation of how to configure a NAS backup for NetApp storage systems, check out Specify File Share Processing Settings.


Figure2) A single checkbox in the VDP UI enables SnapDiff.



Here’s a quick view of VDP in action, backing up an ONTAP CIFS share with SnapDiff enabled.

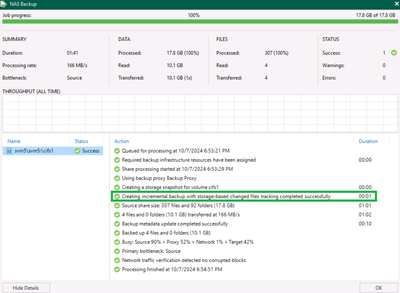

Figure 3) VDP backup of an ONTAP volume with SnapDiff enabled.



Summary

Committed partners NetApp and Veeam are working on several technology integrations that will continue to innovate and improve data protection. With this latest VDP update, Veeam users can protect NetApp workloads faster and more efficiently. Stay tuned for upcoming announcements about how NetApp and Veeam are working together to deliver the most advanced solutions for on premises, cloud, and Kubernetes data protection and resilience.

For more information about NetApp SnapDiff, check out this NetApp Knowledge Base article.

For more information about protecting your NetApp storage systems with Veeam, check out this Veeam article.

Comments

ybarrap2003
NetApp A-Team

Great work Ryan😀!

bruening-e
Contributor

Hi Ryan,



very nice article.

Do you have any experience how the backup job duration has decreased and the proxy server load has been reduced after starting to use NetApp change block tracking?



Kind Regards

Eric

ST123
Contributor

Hi,



the feature doesn't seem to be quite finished yet...




regards,

Sebastian

RyanB
NetApp
Hi Sebastian,

Thanks for checking out the article.

Based on your screenshot, it looks like you're trying to use a Linux cache repo for Veeam file change tracking. I believe the cache can only be on a Windows system, but when using the SnapDiff (native) change tracking option, the VDP cache repository isn't needed.


HTH,

Ryan Behiel
Technical Marketing Engineer / Product Manager
Data Services

NetApp
403.831.0066 Mobile Phone
ryan.behiel@netapp.com

[NetApp logo]<>

[A white face with black eyes Description automatically generated]<>[A black background with a black square Description automatically generated with medium confidence]<>[NetApp on Instagram]<>[NetApp on LinkedIn]<>[NetApp on YouTube]<>[NetApp on X]<>

ST123
Contributor

Hello Ryan!



Yes, we are using a Linux cache repo, and with that, the backup works.
However, the entire article is about how SnapDiff would be better, faster, and simpler—but it specifically does not work with the Linux repo.
That’s why I made my post, to point that out.



regards,

Sebastian
