Part 4 — Configuring your NetApp infrastructure for AI agents

[MinithP]

Putting it all together: From architecture to action

AI agents reason, Model Context Protocol executes, and NetApp’s built-in security protects. But what about AI frameworks? Frameworks only matter if they translate into real-world implementation. So, let’s address the practical question every architect and infrastructure team asks: how do I actually set this up?

The answer is not to bolt AI onto existing infrastructure and hope for the best. It is to design the agentic workflow with the same rigor you would apply to any enterprise automation… identity first, least privilege by default, protection from day one, and full observability before the first action is ever taken.

Best practices guide: Deploying AI agents on NetApp storage

Phase 1 — Establish identity and authorization first

Before the agent touches a single volume, define who it is and what it is allowed to do.

Step	What to Do	Why It Matters
Define agent identity	Create a dedicated OAuth 2.0 client identity for each agent or agent class in ONTAP	Agents should never share credentials with human administrators or other automation
Scope REST RBAC roles	Create custom REST roles that grant only the specific API endpoints the agent needs	A provisioning agent does not need snapshot deletion permissions; a monitoring agent does not need write access
Eliminate static credentials	Use MCP Secret Wrapper to inject credentials from CyberArk or HashiCorp Vault	No long-lived passwords in config files, environment variables, or source repositories
Set SVM boundaries	Restrict agent access to specific SVMs rather than cluster-wide admin	Contains the blast radius if an agent identity is compromised
Enable MCP read-only mode for discovery	Start with --read-only flag on the ONTAP MCP server	Let teams validate what the agent can see before granting it the ability to act

The principle: An AI agent should start with zero permissions and be granted only what it needs. Never the other way around.

Phase 2 — Configure the MCP interface layer

Set up a structured interface between the agent and ONTAP.

Step	What to Do	Why It Matters
Deploy ONTAP MCP server	Run as a container or local service, configured against target clusters via ontap.yaml	Centralized, consistent interface for all agent-to-storage interactions
Register target clusters	Configure multi-cluster registration for all ONTAP clusters the agent needs to manage	Single MCP endpoint for cross-cluster operations
Enable streamable HTTP	Configure streamable HTTP transport for production deployments	Supports multiple concurrent client connections and is more robust than stdio for enterprise use
Select the right MCP server for the workload	Use ONTAP MCP for infrastructure operations, DataOps Toolkit for MLOps workflows, Harvest for observability, Workload Factory GenAI for RAG	Each server is purpose-built — do not force one server to do everything
Use cluster management LIF	Point MCP server to the cluster management LIF as the API access point	NetApp's recommended access pattern for REST API automation

The principle: The MCP layer should be purpose-built, centrally managed, and configured for the specific workload — not a generic catch-all.

Phase 3 — Enable protection and recovery before the first action

Activate NetApp built-in security before the agent starts operating.

Step	What to Do	Why It Matters
Apply snapshot policies	Configure automated snapshot policies on all agent-managed volumes	Guaranteed recovery points if an agent makes a mistake
Enable ARP	Ensure Autonomous Ransomware Protection is active on agent-managed NAS volumes	Real-time anomaly detection catches unusual agent write/delete patterns
Configure SnapLock where required	Apply WORM immutability to audit logs, workflow outputs, and sensitive datasets	Prevents agents (or compromised agents) from tampering with evidence
Set up FlexClone for isolation	Direct agents to operate on cloned datasets for experimental or high-risk workflows	Contains blast radius — production data is never directly modified
Enable MAV for destructive operations	Require multi-admin approval for volume deletion, snapshot policy changes, and SnapLock modifications	Human-in-the-loop gate for the operations that matter most
Configure QoS policies	Set throughput and IOPS ceilings on agent-provisioned volumes	Prevents runaway agent behavior from impacting other workloads
Set up export policies	Restrict NFS/CIFS access to approved networks and hosts	Controls which systems can access agent-provisioned data

The principle: Assume the agent will eventually make a mistake or be compromised. Design the recovery and containment model before that happens, not after.

Phase 4 — Enable full observability from Day One

Make every agent action visible, traceable, and auditable.

Step	What to Do	Why It Matters
Enable ONTAP audit logging	Configure management audit logs to capture all REST API activity, including GET requests	Complete record of every agent action with identity, timestamp, and outcome
Configure EMS event forwarding	Forward EMS events to syslog or SIEM platforms	Real-time alerting on security events, authorization failures, and anomalous patterns
Set up REST API log monitoring	Monitor job objects for async operation tracking and error capture	Machine-readable proof of every infrastructure operation
Integrate Storage Workload Security	Connect Data Infrastructure Insights for behavioral analytics	Holistic visibility into agent data access patterns across environments
Forward all logs to SIEM/SOC	Centralize audit logs, REST logs, and EMS events in your enterprise SIEM	Unified monitoring of agent activity alongside other enterprise operations
Enable FPolicy where needed	Configure file-access-level auditing for sensitive volumes	Data-access auditing beyond management operations

The principle: If you cannot prove what the agent did, you cannot trust it. Observability is not optional — it is the foundation of trust.

Phase 5 — Validate with real workflows

Test the full pipeline (i.e. Brain → Hands → Shield) before production deployment.

Step	What to Do	Why It Matters
Start with read-only discovery	Let the agent query volumes, utilization, and policies without write access	Validates MCP connectivity and agent reasoning without risk
Test provisioning in a sandbox SVM	Run provisioning workflows against a non-production SVM	Confirms the full workflow works before touching production
Verify audit trail completeness	Confirm that every agent action appears in audit logs, REST logs, and EMS events	Ensures observability is working before production traffic begins
Test MAV approval flow	Trigger a MAV-protected operation and confirm the approval workflow functions correctly	Validates the human-in-the-loop gate before it is needed in a real incident
Simulate a failure scenario	Intentionally trigger an agent error and verify snapshot recovery and ARP detection	Confirms the Shield works when it matters most
Review RBAC scoping	Attempt operations outside the agent's granted permissions and confirm they are denied	Validates least-privilege enforcement

The principle: Trust but verify. Every control should be tested before the agent operates in production.

Quick start checklist

For teams that want a condensed reference:

•  Agent identity created with dedicated OAuth 2.0 client
•  REST RBAC role scoped to required endpoints only
•  MCP Secret Wrapper configured — no static credentials
•  SVM boundaries defined for agent access
•  ONTAP MCP server deployed and configured via ontap.yaml
•  Target clusters registered
•  read-only mode tested before enabling write access
•  Snapshot policies applied to all agent-managed volumes
•  ARP enabled on agent-managed NAS volumes
•  SnapLock configured for audit logs and sensitive outputs
•  MAV enabled for destructive operations
•  QoS policies set on agent-provisioned volumes
•  Export policies configured for approved networks
•  Audit logging enabled (including GET requests)
•  EMS events forwarded to SIEM/SOC
•  Storage Workload Security connected
•  Full workflow validated in sandbox before production

Example 1 — Automatic provisioning

Suppose a user asks:

"Create a 200 TB NFS workspace (provisioned as a FlexGroup) for our AI/ML team, apply daily snapshots, and restrict access to our Data Science team."

A NetApp-backed AI workflow:

1. Routes the request through ONTAP MCP
2. Validates identity and scope using OAuth / REST RBAC
3. Inspects capacity through the ONTAP REST API
4. Creates the volume in the correct SVM, applies the right snapshot policy, and attaches the right export policy
5. ARP begins monitoring the new volume automatically
6. Records the full action path in ONTAP's audit logs, REST API logs, and EMS events

Every step is governed, every action is logged, and the volume is protected from the moment it is created.

Example 2 — Remote data discovery and FlexCache

This is one of the most compelling AI-agent workflows in distributed environments: the agent discovers that the required dataset is on a different controller or cluster and uses FlexCache to make that dataset locally accessible without blindly copying the full dataset everywhere.

FlexCache stores hot data near the reader and fetches cold data from the origin on first access, making it highly effective for read-intensive AI and analytics workflows.

A clean workflow:

1. The agent receives a request: "Use the latest governed dataset for this inference or training workflow."
2. Through MCP, the agent checks inventory, metadata, or approved policy sources to determine where the origin dataset lives
3. If the dataset is remote, the workflow validates access scope and policy first using OAuth and RBAC
4. The MCP path creates or uses a local FlexCache relationship rather than an unmanaged bulk copy
5. Local compute reads from the cached working set with improved performance
6. The entire action remains visible through ONTAP audit logs, REST API logs, and EMS events

Why this matters: The agent did not just find the data; it brought the data closer to the workload through a governed, auditable, and policy-aware infrastructure path. No shadow copies. No unmanaged data sprawl. No blind replication.

Remote Data Discovery and FlexCache

Key takeaways

NetApp helps customers turn AI-agent ideas into real operational workflows by providing the interfaces, APIs, storage services, and data-locality features those workflows need. But more importantly, there is a clear, repeatable path to getting there: identity first, give least privilege by default, protect before taking action, and implement observability from day one. NetApp does not ask customers to choose between automation and control. It gives them a way to have both.

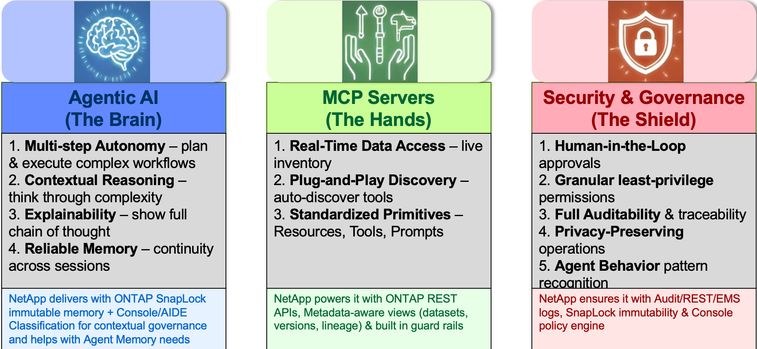

Series Closing — The Brain, The Hands, and The Shield

If there is one message I want everyone to take away from this series, it is this:

AI agents do not have to be risky to be useful.

When they are built on the right foundation, they can access the right data, use the right tools, and operate through the right controls — not because the technology limits them, but because the architecture empowers them.

Across these four parts, we have seen how:

• 🧠 The Brain — the AI agent — provides reasoning, intent, and decision-making, but only creates value when it is connected to real infrastructure, governed data, and structured tools
• 🤲 The Hands — MCP — gives the agent a structured, scoped, and auditable way to interact with enterprise systems, turning natural language intent into validated infrastructure actions
• 🛡️ The Shield — NetApp — provides the governed storage, identity-aware access, immutable protection, anomaly detection, approval gates, and end-to-end traceability that make the entire architecture trustworthy

NetApp does not just store the data that AI agents work with. It empowers those agents to operate with the same discipline, governance, and accountability that enterprises demand from every other part of their infrastructure.

The future of AI in the enterprise is not about removing humans from the loop. It is about giving agents the right foundation so they can act confidently, operate safely, and earn trust — one governed, auditable, and recoverable action at a time.

Next time you think about AI agents with NetApp, think about the Brain, the Hands, and the Shield.

Here are links to all the parts of this blog series.

Blog Intro - Running AI agents on NetApp: Securely, practically, and without surprises

Part 1 — What an AI agent actually is, and why the data layer decides whether it succeeds

Part 2 — What is an MCP Server and why does it matter?

Part 3 — How NetApp empowers AI Agentic workflows

Part 4 — Configuring your NetApp infrastructure for AI agents
