Cannot find "Metrocluster Connectivity" and "Metrocluster Replication" tabs on ActiveIQ UM

Quang-Chinh
1,815 Views

Hello team,



Customer has just added a MCC IP system on his ActiveIQ UM which is already used to monitor MCC FC.

He noticed that two tabs are not shown: "Metrocluster Connectivity" and "Metrocluster Replication"

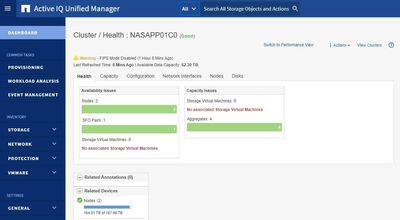

MCC IP NASAPP01C0/C1

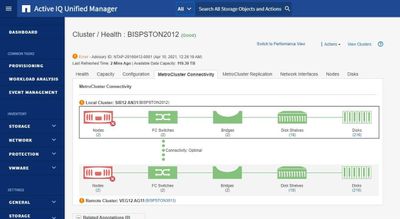

MCC FC BISPSTON2012/3013 :




Is this something expected? Maybe an option not activated yet with MCC IP administration?



Could you please help us to understand why?



Thank you.

Regards,

1 ACCEPTED SOLUTION

niels
1,812 Views

At this time this is expected behavior.

AIQUM does not monitor the MetroCluster backend of an MC IP configuration.

AIQUM handles both the clusters of the MC IP as "regular" clusters.

We expect to add this capability in a future release of AIQUM.



Kind regards, Niels

View solution in original post

1 REPLY 1

niels
1,813 Views

At this time this is expected behavior.

AIQUM does not monitor the MetroCluster backend of an MC IP configuration.

AIQUM handles both the clusters of the MC IP as "regular" clusters.

We expect to add this capability in a future release of AIQUM.



Kind regards, Niels
