Harvest and histogram counters

markweber

does anyone know if Harvest supports histogram counters (like volume:{instance}:cifs_protocol_read_latency or cifs:node:{instance}:cifs_latency_hist)?



thanks

mark

1 ACCEPTED SOLUTION

madden

Hi @markweber,



Harvest understands CM metdata and can post metrics for any CM counter type including 2D and 3D arrays.  So the CIFS histogram one you mentioned should work fine.  If you add them to a custom template that is already using a plugin to do some summarization you do need to verify that post logic is compatible with your newly added counters.  For cdot-cifs it seems the plugin only replaces slashes needed for a counter named Open/Close so no issue there, but for others like volume if you want a roll-up vol_summary metrics created you might have to adjust.



So for 8.3 you could update to add the one in red:



	'cifs:node' =>
			{
				counter_list     => [ qw(instance_name instance_uuid
									cifs_op_count
									cifs_ops cifs_read_ops cifs_write_ops
									cifs_latency cifs_read_latency cifs_write_latency
									connections established_sessions open_files signed_sessions
cifs_latency_hist ) ], graphite_leaf => 'node.{instance_name}.cifs', plugin => 'cdot-cifs', enabled => '1' },

Then in your metrics tree you will see a new ones like:

node.{nodename}.cifs.cifs_latency_hist.<20us

node.{nodename}.cifs.cifs_latency_hist.<40us

...



Cheers,
Chris Madden

Storage Architect, NetApp EMEA (and author of Harvest)

Blog: It all begins with data



If this post resolved your issue, please help others by selecting ACCEPT AS SOLUTION or adding a KUDO

View solution in original post

7 REPLIES 7

madden

Hi @markweber,



Harvest understands CM metdata and can post metrics for any CM counter type including 2D and 3D arrays.  So the CIFS histogram one you mentioned should work fine.  If you add them to a custom template that is already using a plugin to do some summarization you do need to verify that post logic is compatible with your newly added counters.  For cdot-cifs it seems the plugin only replaces slashes needed for a counter named Open/Close so no issue there, but for others like volume if you want a roll-up vol_summary metrics created you might have to adjust.



So for 8.3 you could update to add the one in red:



	'cifs:node' =>
			{
				counter_list     => [ qw(instance_name instance_uuid
									cifs_op_count
									cifs_ops cifs_read_ops cifs_write_ops
									cifs_latency cifs_read_latency cifs_write_latency
									connections established_sessions open_files signed_sessions
cifs_latency_hist ) ], graphite_leaf => 'node.{instance_name}.cifs', plugin => 'cdot-cifs', enabled => '1' },

Then in your metrics tree you will see a new ones like:

node.{nodename}.cifs.cifs_latency_hist.<20us

node.{nodename}.cifs.cifs_latency_hist.<40us

...



Cheers,
Chris Madden

Storage Architect, NetApp EMEA (and author of Harvest)

Blog: It all begins with data



If this post resolved your issue, please help others by selecting ACCEPT AS SOLUTION or adding a KUDO

View solution in original post

markweber

Awesome - thanks Chris!

markweber

as a followup question -

is it possible to use the override hash to change/map the label values?

something like:

'cifs:node' =>
                                {
                                        cifs_latency_hist => { labels => {20us,40us,60us,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,100ms,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf}}
                                },



Grafana seems to have issues with <,>,= in the metric names and using a plugin regex seems impractical (at least for my weak regex skills)



thanks

m



markweber

after a little bit of trial and error, this seems to work:



'cifs:node' =>
                                {
                                        cifs_latency_hist => { 'label-info' => '20us,40us,60us,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,100ms,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                },



madden

Hi @markweber



Actually that label syntax is not something I've designed in so I would be surprised if it works.



I was working with another customer today and verified this:



	'volume:node' =>
			{
				counter_list     => [ qw(instance_name
total_protocol_read_latency
total_protocol_write_latency
									)],
				graphite_leaf    => 'node.{instance_name}.vol_summary',
				enabled          => '1'
			},

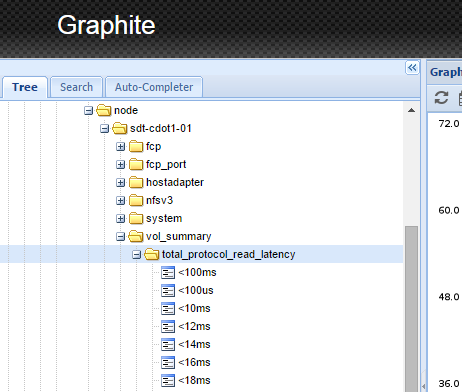

results in display in Graphite as this:




So I think your original syntax was the correct one.



Cheers,
Chris Madden

Storage Architect, NetApp EMEA (and author of Harvest)

Blog: It all begins with data



If this post resolved your issue, please help others by selecting ACCEPT AS SOLUTION or adding a KUDO





markweber

Hi Chris -



Both work great - i kinda switch contexts on you for the second question.

I added histogram counters as below:



        'nfsv3:node' =>
                        {
                                counter_list     => [ qw(instance_name instance_uuid
                                                                        nfsv3_latency_hist read_latency_hist write_latency_hist
                                                                        ) ],
                                graphite_leaf    => 'node.{instance_name}.nfsv3',
                                enabled          => '1'
                        },
        'cifs:node' =>
                        {
                                counter_list     => [ qw(instance_name instance_uuid
                                                                        cifs_latency_hist cifs_read_latency_hist cifs_write_latency_hist
                                                                        ) ],
                                graphite_leaf    => 'node.{instance_name}.cifs',
                                plugin           => 'cdot-cifs',
                                enabled          => '1'
                        },

and that worked perfectly, but Grafana had trouble with the special characters, so i added the following to the override definitions





%override = (
                                'cifs:node' =>
                                {
                                        cifs_latency_hist        => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,10
0ms,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                        cifs_read_latency_hist   => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,10
0ms,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                        cifs_write_latency_hist  => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,10
0ms,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                },



                                'nfsv3:node' =>
                                {
                                        nfsv3_latency_hist     => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,100m
s,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                        read_latency_hist      => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,100m
s,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                        write_latency_hist     => { 'label-info' => '20us,40us,60u,80us,100us,200us,400us,600us,800us,1ms,2ms,4ms,6ms,8ms,10ms,12ms,14ms,16ms,18ms,20ms,40ms,60ms,80ms,100m
s,200ms,400ms,600ms,800ms,1s,2s,4s,6s,8s,10s,20s,30s,60s,90s,120s,inf' },
                                },

which renamed the metrics from '>20us' to '20us', etc



i was able to get a dashboard built that i'm fairly happy with -

dashboard json is here if anyone is interested: https://gist.github.com/mrkwbr/bd69eb8dfba429dd2a67#file-netapp-detail-node-latency-histogram-json



thanks again for your help

mark






madden

Hi @markweber



Great job to extend Harvest for your needs, this is exactly what I hoped people would do!



Indeed, I didn't understand your label mapping table but now I get it that you added that snippet to the overrides table and not the main poller hash.  Maybe I should edit Harvest to detect labels that include <>= and replace them with gt, lt, and eq.  Thoughts?  Because Graphite allowed them (I think = as well but not positive) it hasn't come up before.  But if Grafana has trouble them maybe it is something to modify across the board.



Cheers,
Chris
