Storage pool - SSD Cache fas2500 - ontap 8.3p1

I have a fas2554 - twin controller

in this device i have 2x2tb sata drives

and 4 x ssd drives for cache




these drive as above are spare

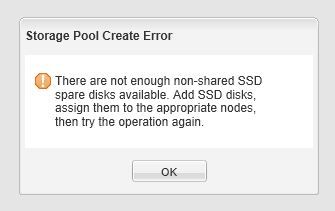

when i try to create a storage pool i get the message:



(not enough disks)








so online help directs me to create via cli:



storage pool create -storage-pool SP1 -disk-list 1.0.1,1.0.2,1.0.3,1.0.0



Error: command failed: Disk "1.0.1" cannot be shared. Reason: Disk is not

       partitionable.





can any body direct me on how to setup the ssd cache on this device?



15 REPLIES 15

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

With Storage Pools, we need a physical spare... with 4x SSD, create the pool with 3 disks.  Then you have 1 spare.  Then modify the aggregate with hdd "aggr modify -hybrid-enabled true" then "aggr add-disks -storage-pool spname -allocation-units xx" to assign allocation units... 2 per node available by default in the HA-Pair (4 allocation units total).

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1















Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

Any chance those disks are already partitioned (probably, during installation)?


You cannot use SSDs that have been partitioned for root-data partitioning in a storage pool



Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

Good question..check if in use already...or could also be disk assigment.. shared by both nodes, but to start check where they are assigned.

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

so, as this is a blocker to putting data on the system (i want it working correctly before it goes into production) i decided to zero the disk and setup a fresh



went thru the setup again and its the same as before!

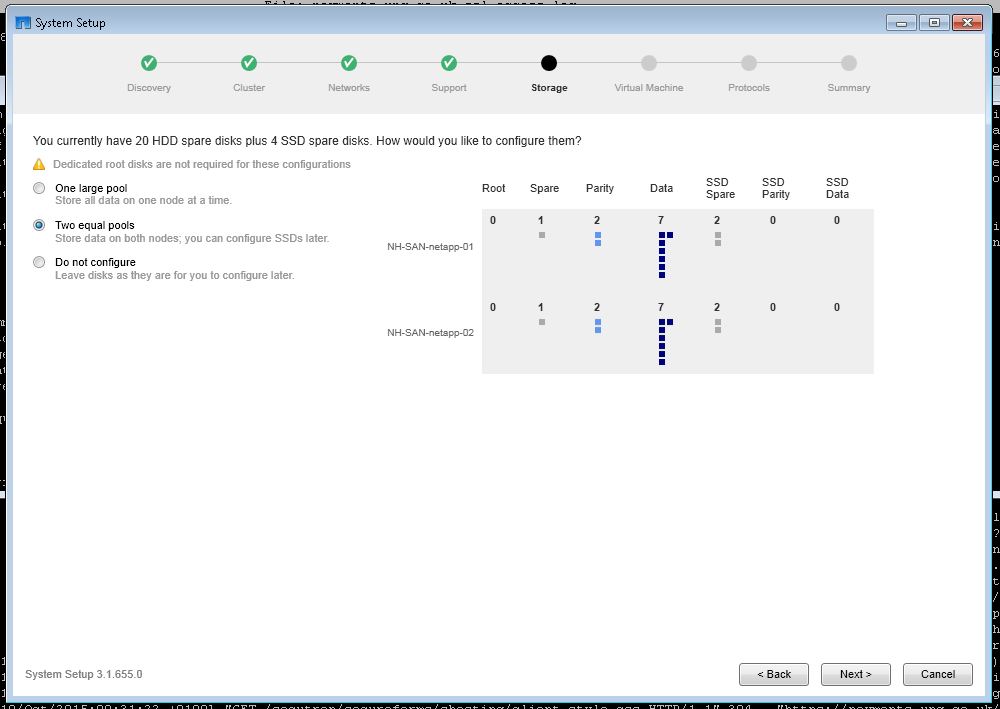

as in setup, i selected the option as below, so no the disk should not be partioned




Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

disks as per image above, 2 per controller

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

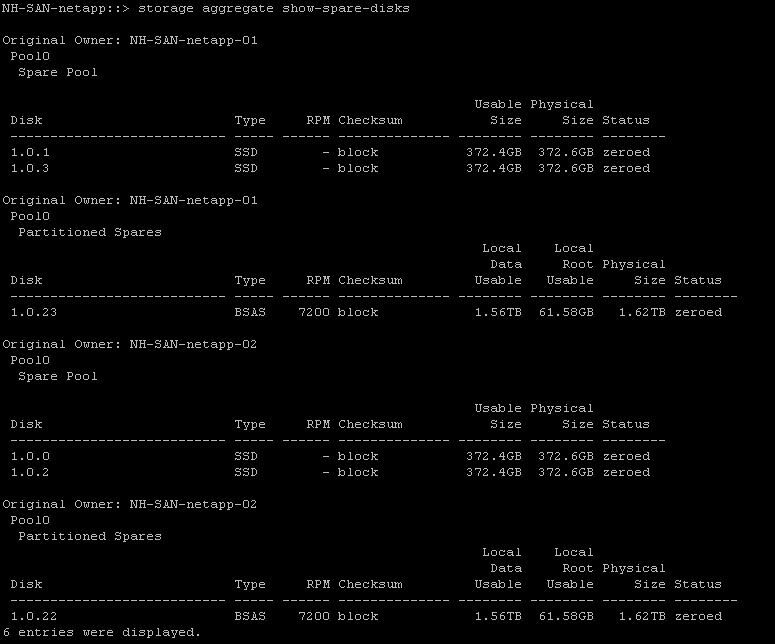

Let's go check the CLI. What is the output of storage aggregate show-spare-disks ?

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1


Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

You can create the 3 drive storage pool from the CLI... you have 1 virtual spare for data and root so all set there with the aggregate already.

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

it wont let me creat it unless ive got the command wrong?




Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

what version ontap? system image show or version output.  Also make sure the disk qualification file is installed..



One other thing...did you disable ssd partitions?  From the loader printenv setenv allow-ssd-partitions?  or from the diag systemshell, kenv | grep setenv allow-ssd-partitions?

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

NH-SAN-netapp::> system image show
                 Is      Is                                Install
Node     Image   Default Current Version                   Date
-------- ------- ------- ------- ------------------------- -------------------
NH-SAN-netapp-01
         image1  true    true    8.3P1                     9/17/2015 20:45:26
         image2  false   false   8.2.3                     10/12/2015 11:18:48
NH-SAN-netapp-02
         image1  true    true    8.3P1                     9/17/2015 20:45:14
         image2  false   false   8.2.3                     10/12/2015 11:18:52
4 entries were displayed.



disk qualification file was installed (before i zeroed the disk, made no difference)



not change anything with the loader!



i have noticed this thou:



NH-SAN-netapp::> storage aggregate show-spare-disks -disk-type SSD

Original Owner: NH-SAN-netapp-01
 Pool0
  Spare Pool

                                                           Usable Physical
 Disk                        Type     RPM Checksum           Size     Size Status
 --------------------------- ----- ------ -------------- -------- -------- --------
 1.0.1                       SSD        - block           372.4GB  372.6GB zeroed
 1.0.3                       SSD        - block           372.4GB  372.6GB zeroed

Original Owner: NH-SAN-netapp-02
 Pool0
  Spare Pool

                                                           Usable Physical
 Disk                        Type     RPM Checksum           Size     Size Status
 --------------------------- ----- ------ -------------- -------- -------- --------
 1.0.0                       SSD        - block           372.4GB  372.6GB zeroed

Original Owner: NH-SAN-netapp-02
 Pool0
  Spare Pool

                                                           Usable Physical
 Disk                        Type     RPM Checksum           Size     Size Status
 --------------------------- ----- ------ -------------- -------- -------- --------
 1.0.2                       SSD        - block           372.4GB  372.6GB zeroed
4 entries were displayed.

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

I don't see why it isn't letting you create the pool.. .the listing of 2 then 1 and 1 might just be the output scroll.. run "rows 0" then see the output again.  I would try to assign the drives to one node then create the pool.. and open a case to see what the error is... I haven't seen that on any install yet.  If no environment loader setenv change, it has to be something simple we are missing here.

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

well at a final roll of the dice, i upgraded to 8.3.1



and its now worked!!!!! so all i can conclude that there must be a bug in 8.3p1?

Re: Storage pool - SSD Cache fas2500 - ontap 8.3p1

likely was... I would upgrade to 8.3.1P1 since it just posted..
