Disk Failure - DS212C (FAS2520)

Reuben
12,753 Views

I have both the Activity and Attention LED's off in one of the disks - NetApp DS212C disk shelf (FAS2520). The disk is NetApp 108-00270+B0 - 2TB 7.2K RPM 64MB Cache SATA 3.5" encased in a NetApp 111-00734+C0 - 2TB Hard Drive Caddy with NetApp P003464-01a - Emulex SATA - SAS Server Interposer Board.

What could be wrong? The disk or the carrier / caddy.

16 REPLIES 16

maffo
12,630 Views

What is the status of the disk in ONTAP? Is is failed, unassigned, etc.?



paul_stejskal
12,613 Views

Event log show say anything? (might need set diag to see anything)





Reuben
12,611 Views

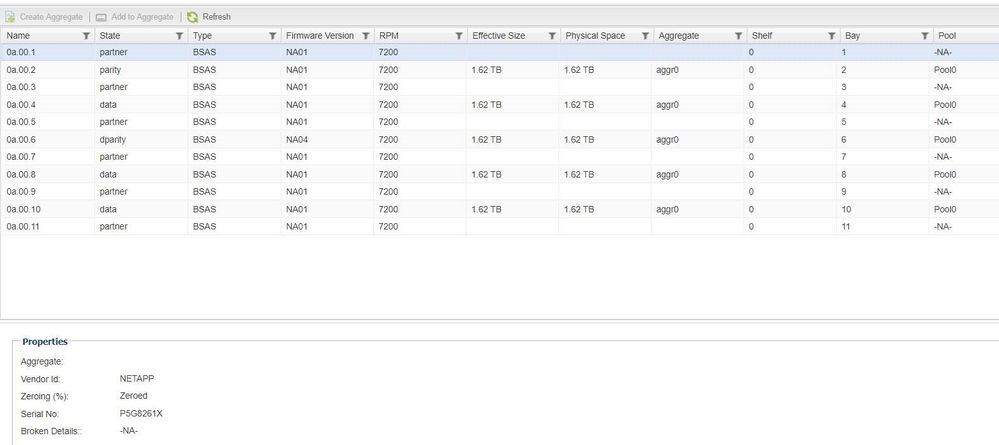

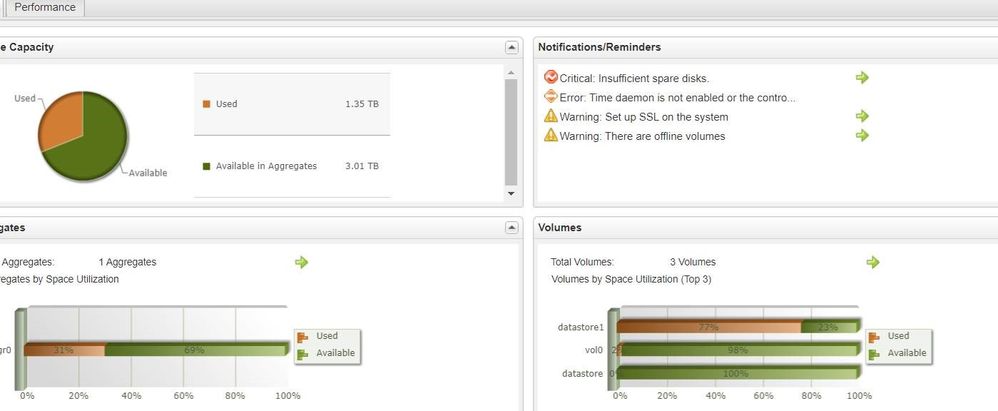

It is the disk 0a.00.1 in Bay 1 as inserted below 👇

NetApp.jpgNetApp 1.jpg

paul_stejskal
12,599 Views

Those screenshots don't tell me anything.



It might be quicker to open a case.

Reuben
12,597 Views

Am sorry Paul - am still very green with NetApp and new here. By "open a case" you mean?

paul_stejskal
12,593 Views
Do you have an active support contract? Sorry we usually assume you have a slight knowledge of how to work the system, so I apologize for the confusion.

What is your serial number (send PM)? I'll check.

If you need it, you can do:

1. SSH in using PuTTY or other terminal, same login as System Manager.
2. Run "node show -instance"
3. The serial # will be output there.

Also, the support site mysupport.netapp.com should have more info on your system. If you aren't registered on your system you can call our Support line once you get the serial # and have your contact info registered.

Thank you.

Reuben
12,557 Views

Thankyou. We currently do not have any active support contract.



Serial Number Inboxed

AlainTansi
12,586 Views

Have you tried reseating the IOM?

It may not be making good contact with the mid-plane connectors.



From the screenshots, what i can see is that you  are running out of spare disks which that should be addressed separately.



Please share your feedback

Reuben
12,555 Views

Thankyou very much for your advice - will try reseating the IOM tomorrow and send feedback. Only un-plugged the disk n plugged it back.



Correction. The hard Disk is in Bay 0 and is not captured in the screenshot. We cannot see it from ONTAP. We can only view disks in Bay 1 through to 11

paul_stejskal
12,546 Views
[?] Thu May 21 17:25:54 EAT [nodename: pmcsas_timeout_0: sas.adapter.debug:info]: params: {'debug_string': 'One or more (1) PHYs on expander 5:00a098:005a99c:ff are in a bad state.', 'adapterName': '0a'}

It may be a bad connection, or it may be a bad part.  Also, I noticed SAS 0b wasn't hooked up. This will need to be fixed too.

amans
12,390 Views

Hello,



If you can let me know the serial number, I can dig further.



Regards,

Aman

amans
12,369 Views



Hi Reuben,



Thank you for sharing the serial number.



So, I see the node was halted back in July 29,2018 and ever since disk 00.0 is in missing state.



I would suggest to pull out the disk 00.0, wait for 2 mins, insert the disk and see if it comes online. It it does not, then you should be looking for a replacement.



Regards,

Aman



Reuben
12,161 Views

Hi Amans



Pulling out the disk for 2min and sliding it back in didn't change the missing state. We placed an order for a replacement disk complete with the caddy and emulex board. Scheduled for the replacement yesterday but unfortunately same result. The new disk was also missing in ONTAP and the Activity and Attention LED's are still off.



Can an updated Disk Qualification Package (DQP) resolve this issue. It has been listed as a risk in Active IQ wellness - same as OS and Firmware Upgrade.

amans
12,159 Views



Hi Reuben,



Thanks for getting back!



Yes, please  upgrade the DQP and also theIOM6E FW and see if that helps.



If the issue continues, then if there is spare disk on partner node then swap 00.00 with spare disk and see if the problem follows or remains with slot 0.



Regards,

Aman





amans
11,950 Views

Hi Reuben,



Did you get a chance to upgrade the DQP and shelf FW?



Regards,

Aman

not_a_Lone_wolf
8,586 Views

Hi,

The fact that none of the LED’s are active on that disk indicates a problem with the hardware and not software. You can try updating DQP and firmware but I don’t think it would be of much help since the disk is not up yet as per ONTAP , and it fails to detect the disk.

Please try below:

1> Swap the disk with a known good spare disk and check if the swapped disk and spare disks are detected in their respective drive slots.

2> If the known good spare drive is not detected in Bay 0, then the drive slot is faulty, maybe broken latch. If the drive is not detected in the swapped slot, then the drive itself is faulty. Replace it( I am assuming it’s an internal disk and hence do not reseat the PCM without expert opinion of Support)



Please let me know if it works.
