What is the API call to show/hide .snapshot directory?

milk

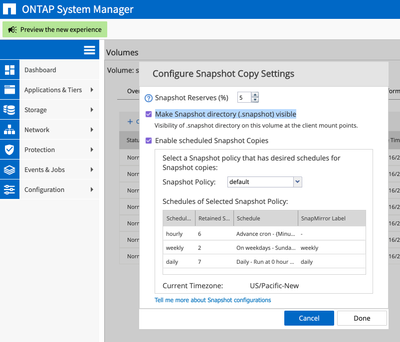

I have been led to believe that all of the interactions in the ONTAP System Manager UI map to API calls but I cannot seem to find the call that toggles visibility of the .snapshot directory as seen in the 'Configure Snapshot Copy Settings' dialogue after selecting Storage > Volume > VOLUME_NAME.



Screen Shot 2020-09-16 at 12.28.31 PM.png

I have dug through the API documentation (https://library.netapp.com/ecmdocs/ECMLP2856304/html/index.html) and see no reference to the .snapshot dir.  I also know that the "Preview the new experience" has an option to show all the API calls but the .snapshot directory visibility toggle is missing in the preview.



I am no web developer but was able to identify the component in the console of my browser (id="gwt-debug-netapp-clSnapshotConfigureDialogEnableScheduleCheckBox") but it ended up not being so helpful to me.

3 REPLIES 3

mbeattie

Hi,



I doesn't look like this is available via the REST API to enable\disable access to view the .snapshot directory for a volume.

There is a ZAPI available thought. EG



<?xml version="1.0" encoding="UTF-8"?>
<netapp  xmlns="http://www.netapp.com/filer/admin" version="1.170">
  <volume-modify-iter>
    <attributes>
      <volume-attributes>
        <volume-id-attributes>
          <name>cifs_data_001</name>
          <owning-vserver-name>vserver1</owning-vserver-name>
        </volume-id-attributes>
        <volume-snapshot-attributes>
          <snapdir-access-enabled>false</snapdir-access-enabled>
        </volume-snapshot-attributes>
      </volume-attributes>
    </attributes>
    <max-records>1</max-records>
    <query>
      <volume-attributes>
        <volume-id-attributes>
          <name>cifs_data_001</name>
          <owning-vserver-name>vserver1</owning-vserver-name>
        </volume-id-attributes>
        <volume-snapshot-attributes>
          <snapdir-access-enabled>true</snapdir-access-enabled>
        </volume-snapshot-attributes>
      </volume-attributes>
    </query>
  </volume-modify-iter>
</netapp>

The above will disable the snapshot dir access for the volume.

cluster1::> vol show -vserver vserver1 -volume cifs_data_001 -fields snapdir-access
vserver  volume        snapdir-access
-------- ------------- --------------
vserver1 cifs_data_001 false

To enable it again reverse the true\false parameters. EG:

<?xml version="1.0" encoding="UTF-8"?>
<netapp  xmlns="http://www.netapp.com/filer/admin" version="1.170">
  <volume-modify-iter>
    <attributes>
      <volume-attributes>
        <volume-id-attributes>
          <name>cifs_data_001</name>
          <owning-vserver-name>vserver1</owning-vserver-name>
        </volume-id-attributes>
        <volume-snapshot-attributes>
          <snapdir-access-enabled>true</snapdir-access-enabled>
        </volume-snapshot-attributes>
      </volume-attributes>
    </attributes>
    <max-records>1</max-records>
    <query>
      <volume-attributes>
        <volume-id-attributes>
          <name>cifs_data_001</name>
          <owning-vserver-name>vserver1</owning-vserver-name>
        </volume-id-attributes>
        <volume-snapshot-attributes>
          <snapdir-access-enabled>false</snapdir-access-enabled>
        </volume-snapshot-attributes>
      </volume-attributes>
    </query>
  </volume-modify-iter>
</netapp>

The above enables access to the .snapshot directory. EG

cluster1::> vol show -vserver vserver1 -volume cifs_data_001 -fields snapdir-access
vserver  volume        snapdir-access
-------- ------------- --------------
vserver1 cifs_data_001 true

What programming language are you using to to invoke API's???



/Matt

If this post resolved your issue, help others by selecting ACCEPT AS SOLUTION or adding a KUDO.

milk

Thanks @mbeattie .  Promising, as this looks like it toggles what I want.  All of the automation I've written so far is in python.



I am not familiar with ZAPI a bit of searching did not turn up much but I did find "... NetApp tools or proprietary ZAPI via the ONTAP SDK".  Then I found post from 2008 of someone having trouble running a secure connection using perl scripts.



Is ZAPI some interface that's addressable only via some non-restful interface?

mbeattie

Hi,



Based on the XML here is a Python example using the NMSDK libraries:



import sys
sys.path.append("<path_to_nmsdk_root>/lib/python/NetApp")
from NaServer import *

s = NaServer("<server name or IP address>", 1 , 170)
s.set_server_type("FILER")
s.set_transport_type("HTTPS")
s.set_port(443)
s.set_style("LOGIN")
s.set_admin_user("<user name>", "<password>")

api = NaElement("volume-modify-iter")

xi = NaElement("attributes")
api.child_add(xi)

xi1 = NaElement("volume-attributes")
xi.child_add(xi1)

xi2 = NaElement("volume-id-attributes")
xi1.child_add(xi2)

xi2.child_add_string("name","cifs_data_001")
xi2.child_add_string("owning-vserver-name","vserver1")

xi3 = NaElement("volume-snapshot-attributes")
xi1.child_add(xi3)

xi3.child_add_string("snapdir-access-enabled","false")
api.child_add_string("max-records","1")

xi4 = NaElement("query")
api.child_add(xi4)

xi5 = NaElement("volume-attributes")
xi4.child_add(xi5)

xi6 = NaElement("volume-id-attributes")
xi5.child_add(xi6)

xi6.child_add_string("name","cifs_data_001")
xi6.child_add_string("owning-vserver-name","vserver1")

xi7 = NaElement("volume-snapshot-attributes")
xi5.child_add(xi7)

xi7.child_add_string("snapdir-access-enabled","true")

xo = s.invoke_elem(api)
if (xo.results_status() == "failed") :
    print ("Error:\n")
    print (xo.sprintf())
    sys.exit (1)

print ("Received:\n")
print (xo.sprintf())



Hope that helps



/Matt

If this post resolved your issue, help others by selecting ACCEPT AS SOLUTION or adding a KUDO.
