DS460C site requirement

chinchillaking
909 Views

Hello,

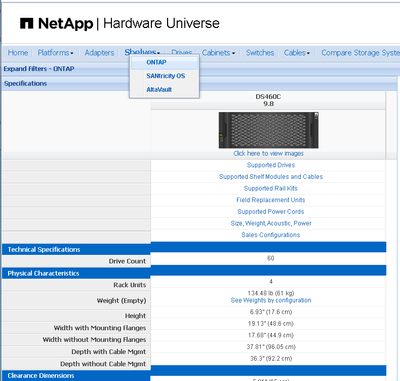

As check with HU, DS460C site require as below:



- is DS460C have cable arm for "Depth with Cable Mgmt"? If yes, how can I found the pitcure or infomration abot cable arm?



- if no, why it have another requirement in "Depth without Cable Mgmt"?



Depth with Cable Mgmt 37.81'' (96.05 cm)
Depth without Cable Mgmt 36.3'' (92.2 cm)






Best regards,



Chung

1 ACCEPTED SOLUTION

TMACMD
900 Views

There is no cable arm. The difference is about 1.5 inches which is the length the cables stick out the back of the SAS/Power ports. It is very deep. In a standard depth cabinet, the power/SAS cables will be up against the door (squished). In a deep cabinet, there are a couple of inches or so between the cables bends and the door.

View solution in original post

1 REPLY 1

TMACMD
901 Views

There is no cable arm. The difference is about 1.5 inches which is the length the cables stick out the back of the SAS/Power ports. It is very deep. In a standard depth cabinet, the power/SAS cables will be up against the door (squished). In a deep cabinet, there are a couple of inches or so between the cables bends and the door.
