High latency from statistics system show

[Jeff_Cai]

Hi all,

We just set up a four-node MCC, when we use the command:

I19NF8060::> statistics system show -interval 5 -iterations 25 -max 25

We get following results:

I19NF8060 : 12/3/2015 15:57:52

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
cluster   2     11 20316  340000

I19NF8060 : 12/3/2015 15:57:56
cluster   2      0  8192  500000

I19NF8060 : 12/3/2015 15:58:00

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
cluster   2      1 11392  600000

I19NF8060 : 12/3/2015 15:58:05
cluster   2      9 16252  404000

I19NF8060 : 12/3/2015 15:58:09

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
cluster   2      0  8192       0

I19NF8060 : 12/3/2015 15:58:13
cluster   2     11 20316  445000

The latency is too high for a new and even empty system (just have a SVM for some testing).

Do you have any ideas of how to find the reason about such high latency?

Best Regards,

Jeff Cai

[niels · Accepted solution]

Hi Jeff,

what is it exactly that you are trying to show? My first guess is you are looking at the wrong output or using the wrong command.

If I take the demo MCC in Munich, which has just 5m distance between the two "sites", I see very similar numbers with that command:

optimus::> statistics system show -interval 5 -iterations 25 -max 25

optimus : 12/4/2015 11:08:01

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
------- --- ------ ----- -------
cluster   5      3  7017  250000

optimus : 12/4/2015 11:08:05
cluster   7      3  2664  142000

optimus : 12/4/2015 11:08:09

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
------- --- ------ ----- -------
cluster   5      2  3945  272000

optimus : 12/4/2015 11:08:13
cluster   2      1   959  400000

optimus : 12/4/2015 11:08:17

        CPU *Total Total Latency
 System (%)    Ops (Bps)    (ms)
------- --- ------ ----- -------
cluster   4      3  1127  538000


optimus::>

Even if I put load on the system (VM running in NFS datastore) the values basically don't look any better:

optimus::> statistics system show -interval 5 -iterations 25 -max 25

optimus : 12/4/2015 11:10:42

        CPU *Total   Total Latency
 System (%)    Ops   (Bps)    (ms)
------- --- ------ ------- -------
cluster   6   1737 9089108 5020000

optimus : 12/4/2015 11:10:46
cluster   4   1743 8754472 5008000

optimus : 12/4/2015 11:10:50

        CPU *Total   Total Latency
 System (%)    Ops   (Bps)    (ms)
------- --- ------ ------- -------
cluster   6   1736 8726654 5028000

optimus : 12/4/2015 11:10:54
cluster   5   1746 9228116 4998000

optimus : 12/4/2015 11:10:58

        CPU *Total   Total Latency
 System (%)    Ops   (Bps)    (ms)
------- --- ------ ------- -------
cluster   5   1746 9296850 5010000

optimus : 12/4/2015 11:11:02
cluster   7   1681 7337343 5173000


optimus::>

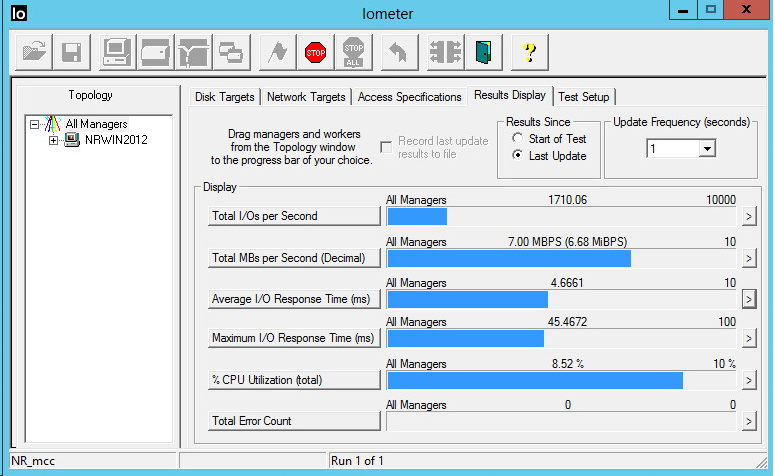

But the reality is, that the VM I'm testing with is doing IO on a mixed 100% random 50% read/write workload at 4.5ms latency and 100% write at 0.5ms latency.

This matches the IO_meter output as well as the ONTAP volume statistics:

optimus::> statistics volume show -interval 5 -iterations 10 -max 25

optimus : 12/4/2015 11:13:06

                                             *Total Read Write Other    Read   Write Latency
                 Volume              Vserver    Ops  Ops   Ops   Ops   (Bps)   (Bps)    (us)
----------------------- -------------------- ------ ---- ----- ----- ------- ------- -------
svm_optimus_esx_demo_ds svm_optimus_esx_demo   1744  869   874     0 3561728 3570216    4361

[...truncated...]

So I assume the command you are using is not showing what you are looking for.

Kind regards, Niels

[Jeff_Cai]

Hi Niels,

Much appreciate your help.

Maybe it's a bug for the result?

Thanks,

Jeff

[Renifa]

Hi,

You can check the ASUP logs or run the perfstat tool for additional information. Also refer the following kb "https://kb.netapp.com/support/index?page=content&id=2023701&actp=LIST_RECENT&viewlocale=en_US&searchid=1449202331051"

Hope this helps.
