Hi to all,
I have on Site A one FAS8020 with two controllers, with one SVM, and 2 volumes that i have protected with Snapmirror to Site B. On Site B i have one FAS8020 with just only one controller and one SVM which will contain the volumes mirrored, and also the vaulted ones.
I marked the Snapshots on FAS A (with an label to_vault) they are being snapmirrored to a volume mirrored on B site. The mirrored volume is the source for the Snapvault. The problem is that the snapshot are not being transfered from Site B Mirrored Volume to Site B Vault volume. Since i have low bandwith between both sites...i prefer these scenario.

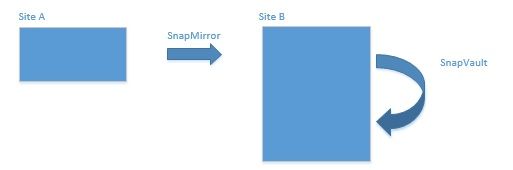

Scenario A
![Untitled.jpg Untitled.jpg](https://community.netapp.com/t5/image/serverpage/image-id/673iFDC86E3297D34FA3/image-size/original?v=mpbl-1&px=-1)

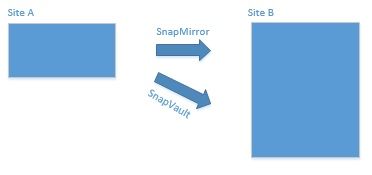

I already tried the classical one wich is the above, and everything is working properly.
![Untitled2.jpg Untitled2.jpg](https://community.netapp.com/t5/image/serverpage/image-id/675i76E9AEDF40CE9B1B/image-size/original?v=mpbl-1&px=-1)
Iam using DATA ONTAP 8.2.1 Cluster.
Kind Regards
