What is the real performance FAS2552 in Xenserver need help!

gor
4,714 Views

Hello, everyone. I`m new in Netapp products and this is my first Netapp 2552. All this system is build by other company. I have some issue, as i think, with FAS2552 performance in Xenserver pool.

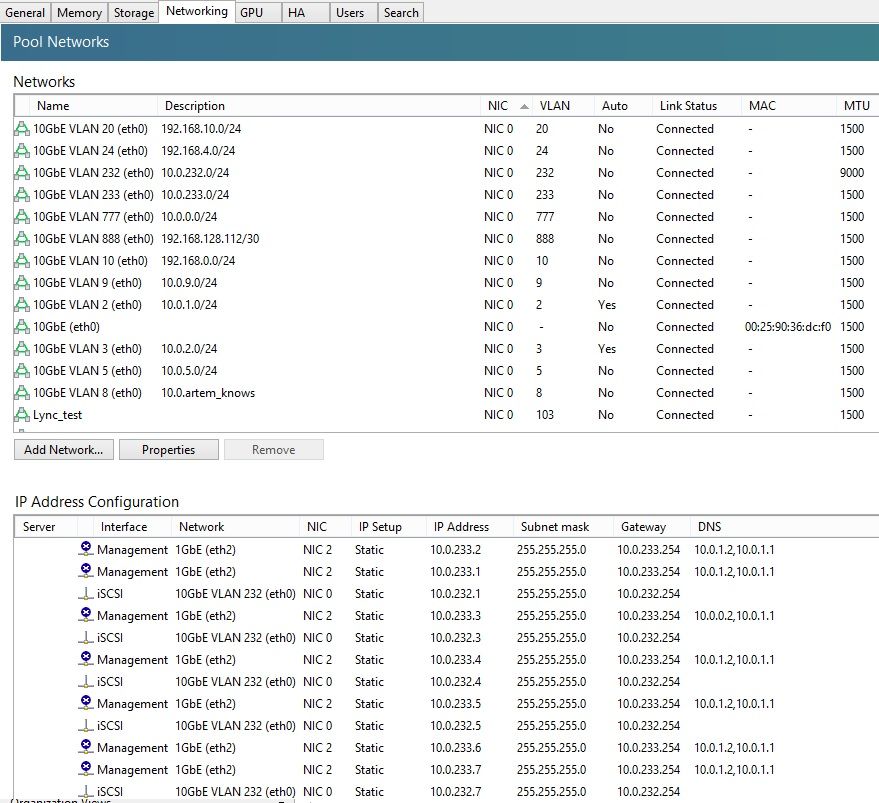

What i have: 10 blades connected tru 2x FO links to Cisco 46XX 10Gb link, no port errors or other issues.

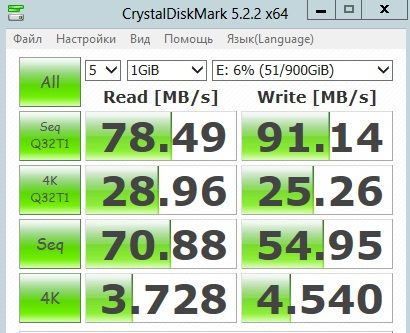

And that i have in VM with 2012 server with disk without load.

I have some exp usage old IBM3200 + HP DL380G7 + HP HBA 6Gb SAS link and it was 600MB/s on raid10 with 12x1xx Gb HDD 15k



I think something wrong with that build... any suggestions?






1 REPLY 1

kahuna
4,687 Views

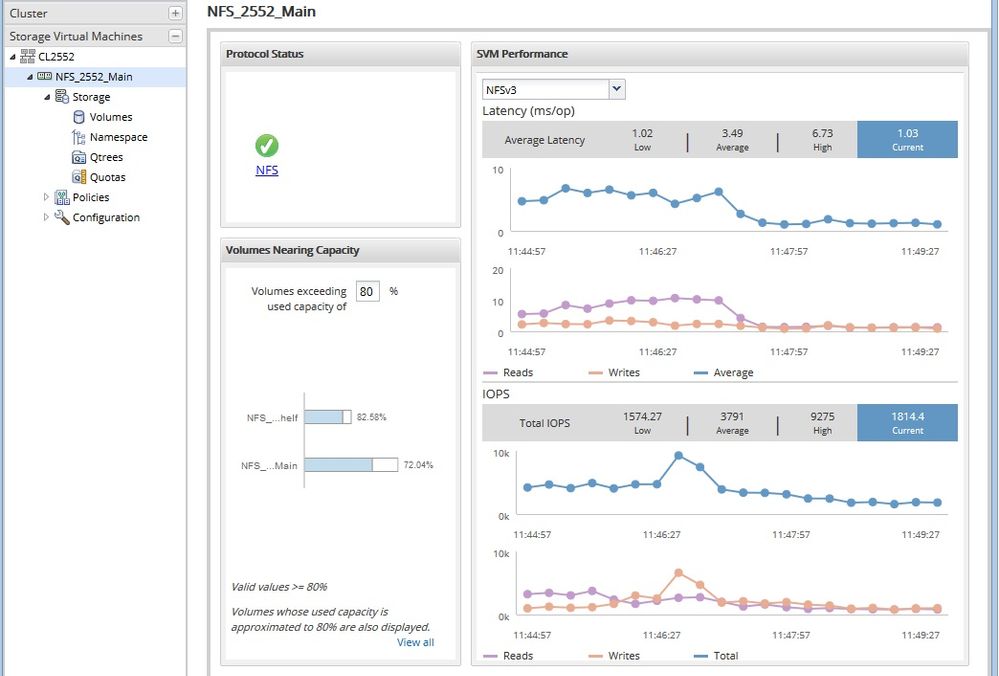

latency looks fine so you just need to push it more. More concurrency, more volumes



I can have a look at a perfstat if you are willing to collect and provide during high load on the 2552:



https://mysupport.netapp.com/tools/info/ECMLP2572102I.html?productID=62125
